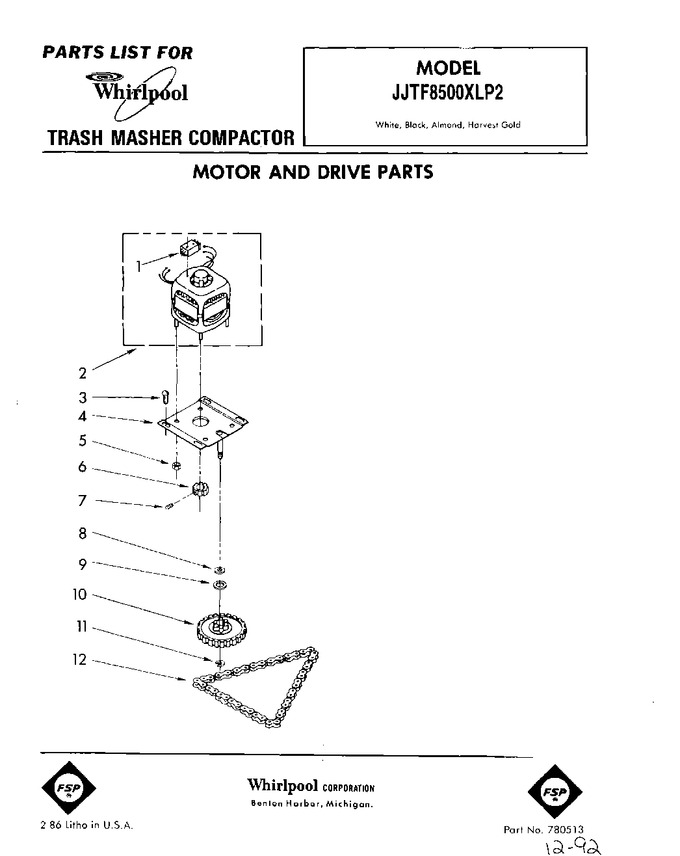

01 - Motor And Drive, Lit/optional
02 - Frame
03 - Powerscrew And Ram
04 - Cabinet And Control
05 - Container
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439651 | Switch Assembly (Replaces: 777710) |
|
$ 308.87 | |||||
| 2 | W10439651 | Motor (includes Illus. 1) (Replaces: 780360) |
|
$ 308.87 | |||||
| 3 | 776593 | Screw. 1/4-20 X 1/2 (4) |
|
- | |||||
| 4 | 776327 | Drive Mount Assembly |
|
- | |||||
| 5 | WP776338 | Locknut, 10-32 (4) (Replaces: 776338) |
|
$ 18.29 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 776839) |
|
$ 111.20 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.13 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 12.65 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 12.82 | |||||
| 10 | 882699 | Drive Gear Assembly (Replaces: 777124) |
|
$ 111.20 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.02 | |||||
| 12 | 780477 | Chain, Drive |
|
$ 195.36 | |||||
| LIT780512 | Guide, Use & Care (english) |
|
- | ||||||
| LIT780513 | List, Repair Parts |
|
- | ||||||
| LIT780488 | Sheet, Tech (french) |
|
- | ||||||
| LIT780487 | Sheet, Tech (english) |
|
- | ||||||
| LIT780142 | Instructions, Installation |
|
- | ||||||
| LIT780511 | Guide, Use & Care (french) |
|
- |
