01 - Cabinet Parts
02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

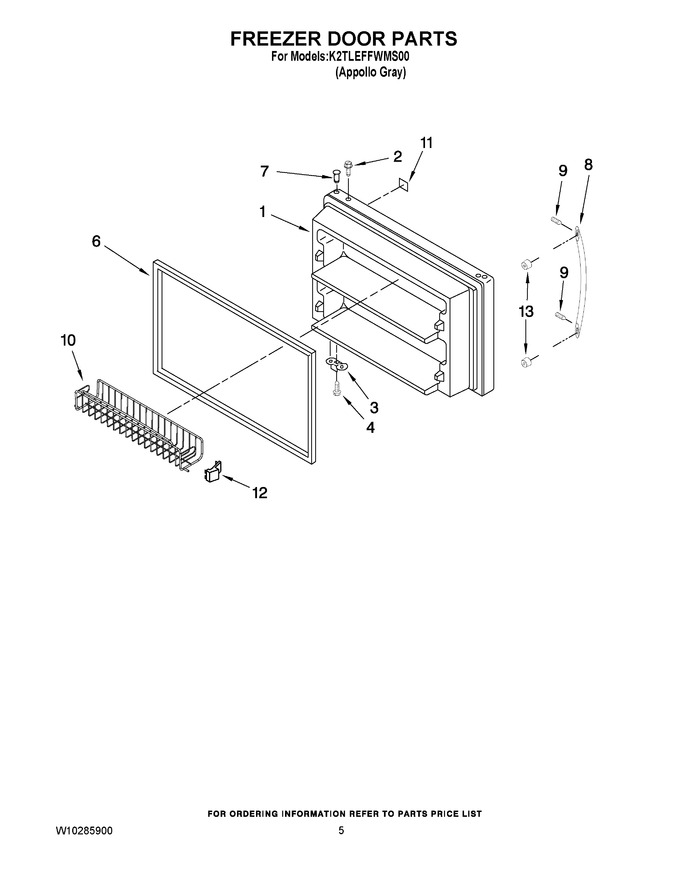

| 1 | W10280348 | Freezer Door (includes Illus. 6 & 7) |
|
- | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 3 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 4 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 6 | W10249196 | Door Gasket, Magnetic (mist Beige) (Replaces: W10171479) |
|
Immediately | $ 251.19 | ||||
| 7 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 8 | W10274656 | Handle, Freezer (includes Illus. 11) (arch) |
|
- | |||||
| 9 | W10278738 | Set Screw |
|
$ 8.37 | |||||
| 10 | 2300796 | Basket, Door (2) |
|
$ 84.50 | |||||
| 11 | W10046610 | Nameplate |
|
$ 33.40 | |||||
| 12 | 2300799 | Endcap, Bskt.(r) |
|
$ 47.65 | |||||
| 12 | 2300798 | Endcap, Bskt.(l) |
|
$ 16.82 | |||||
| 13 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 |
