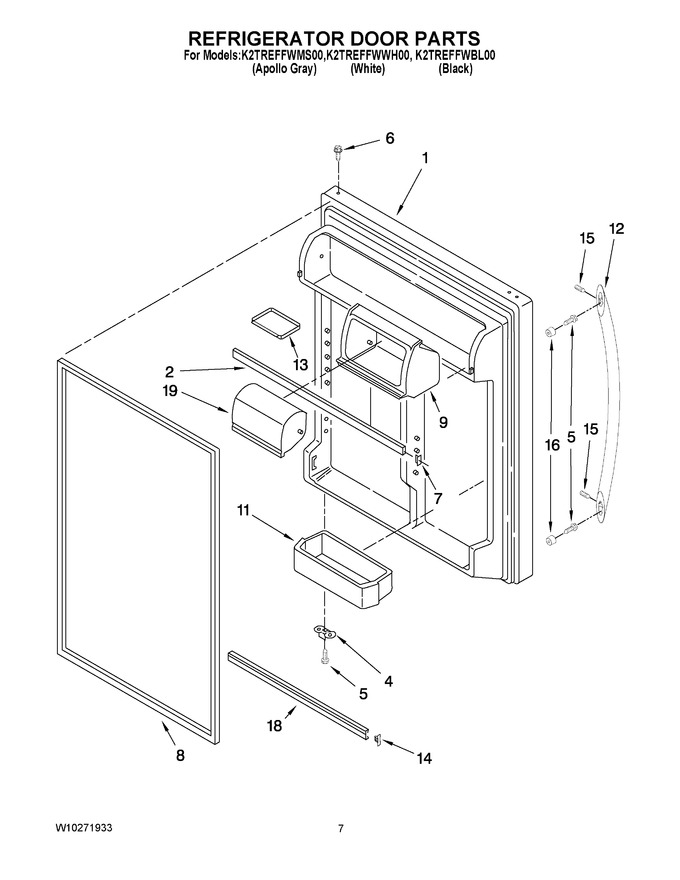

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refriger
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10280358 | Refrigerator Door (includes Illus. 8 & 10) (black) |
|
- | |||||
| 1 | W10280357 | Refrigerator Door (includes Illus. 8 & 10) (white) |
|
- | |||||
| 1 | W10280363 | Refrigerator Door (includes Illus. 8 & 10) (stainless Steel) |
|
- | |||||
| 2 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 6 | WP8281206 | Screw, Shoulder (Replaces: 8281206) |
|
$ 7.53 | |||||
| 7 | 2177340 | Plug-trim |
|
$ 5.84 | |||||
| 8 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 8 | W10249195 | Door Gasket, Magnetic (mist Beige) (Replaces: W10171475) |
|
$ 302.22 | |||||
| 9 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 11 | WP2204813 | Bin, Door Shelf (Replaces: 2179606) |
|
Immediately | $ 73.08 | ||||
| 12 | W10274655 | Handle, Refrigerator (black) |
|
- | |||||
| 12 | W10274656 | Handle, Refrigerator (arch) |
|
- | |||||
| 12 | W10274654 | Handle, Refrigerator (white) |
|
- | |||||
| 13 | 2195388 | Tray, Door |
|
- | |||||
| 14 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 15 | W10278738 | Set Screw |
|
$ 8.37 | |||||
| 16 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 18 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 103.27 | |||||
| 19 | 2218109 | Compartment Door |
|
$ 33.66 |
