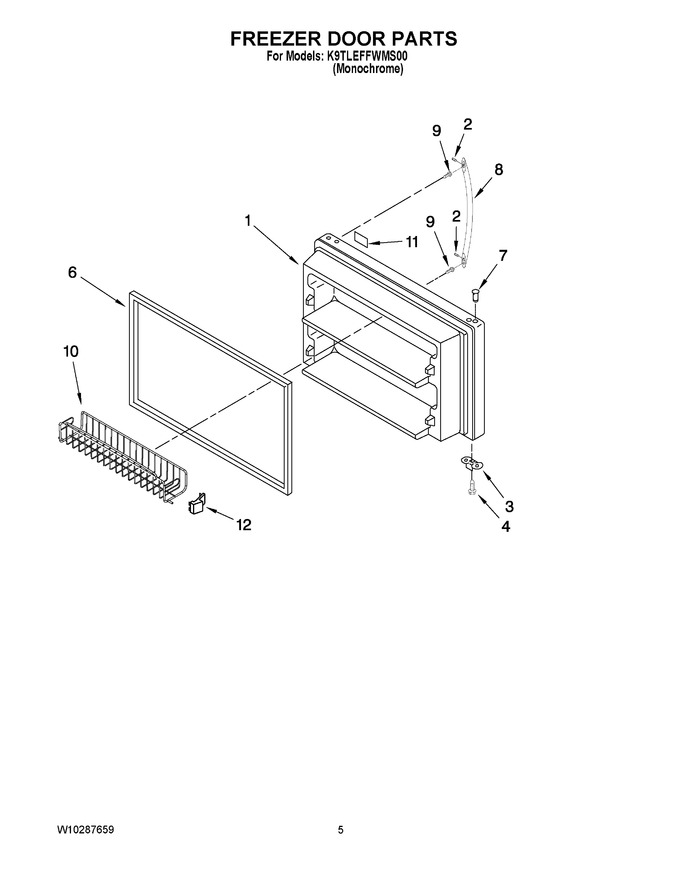

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279785 | Freezer Door (includes Illus. 6 & 7) (monochrome) |
|
- | |||||
| 2 | W10278738 | Set Screw |
|
$ 8.37 | |||||
| 3 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 4 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 6 | W11624958 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10279559) |
|
$ 288.83 | |||||
| 7 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 8 | W10274656 | Handle, Door (includes Illus. 2) (arch Grip) |
|
- | |||||
| 9 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 10 | 2300797 | Door Basket- Fc |
|
- | |||||
| 11 | WPW10243393 | Nameplate (white) (Replaces: W10046670) |
|
$ 62.98 | |||||
| 11 | W10046610 | Nameplate (grey) |
|
$ 33.40 | |||||
| 12 | 2300799 | End Cap-bskt.(rh) |
|
$ 47.65 | |||||
| 12 | 2300798 | End Cap-bskt.(lh) |
|
$ 16.82 |
