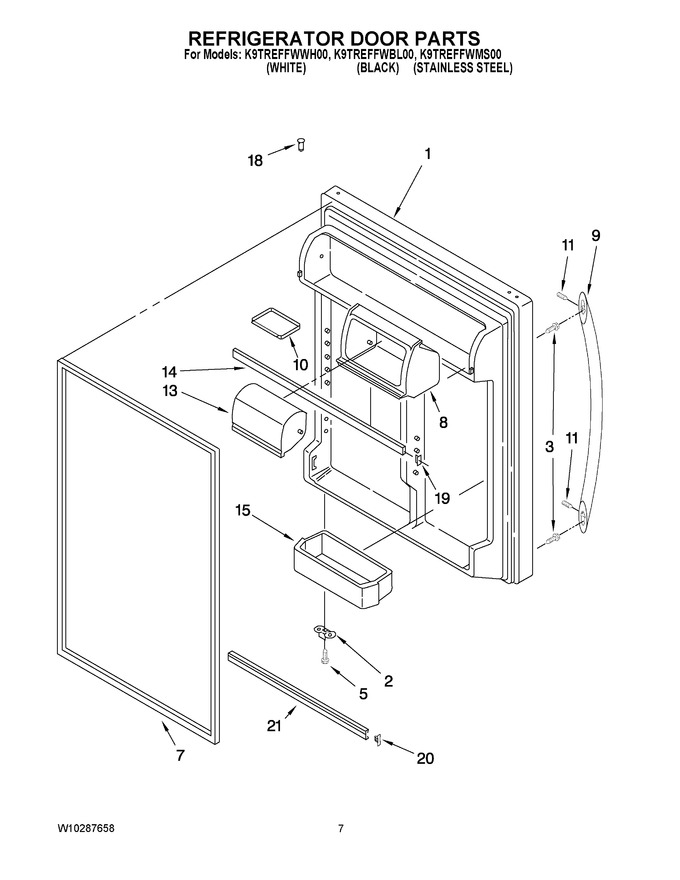

05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10280366 | Refrigerator Door (includes Illus. 7 & 18) (white) |
|
- | |||||
| 1 | W10280373 | Refrigerator Door (includes Illus. 7 & 18) (stainless Steel) |
|
- | |||||
| 1 | W10280367 | Refrigerator Door (includes Illus. 7 & 18) (black) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 7 | W11624977 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10279664) |
|
$ 333.47 | |||||
| 7 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 168.76 | ||||
| 7 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 261.06 | |||||
| 8 | 2210566 | Compartment Door |
|
$ 65.25 | |||||
| 9 | W10274655 | Handle, Door (black) |
|
- | |||||
| 9 | W10274654 | Handle, Door (white) |
|
- | |||||
| 9 | W10274656 | Handle, Door (arch Grip) |
|
- | |||||
| 10 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 11 | W10278738 | Set Screw |
|
$ 8.37 | |||||
| 13 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 14 | 2159312 | Trim-door Shelf |
|
$ 47.75 | |||||
| 15 | 2179605 | Bin, Door (3) |
|
- | |||||
| 18 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 19 | 2177340 | Plug, Trim (2) |
|
$ 5.84 | |||||
| 20 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 122.63 |
