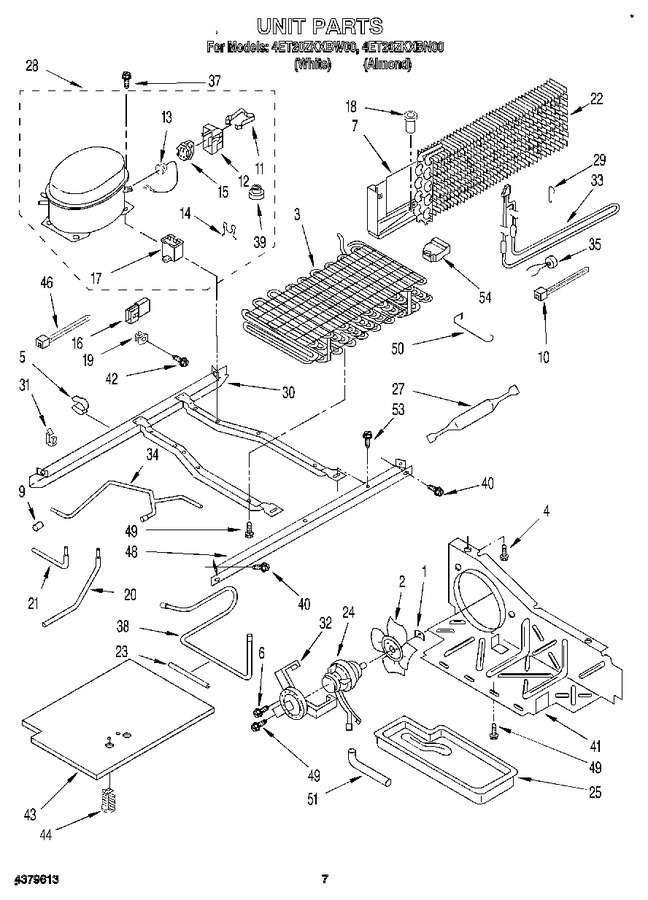

05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2164513		Condenser Assy.		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
10	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
11	2154721		Spring, Relay Case		Appelez-nous	-
12	2154722		Case, Relay		Appelez-nous	-
13	2154719		Overload (service)		Appelez-nous	-
13	2158785		Overload (production)		Appelez-nous	-
14	943320		Spring, Overload		Appelez-nous	-
15	2154720		Relay		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2154717		Running Capacitor		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
20	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
21	2154109		Tube, Process				$ 76.26
22	2153978		Evaporator		Appelez-nous	-
23	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 21.32
24	8201703		Motor, Fan   (Replaces: 2162430)				$ 371.70
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	2162439		Compressor (includes Items 11 12, 13, 14, 15, 17 & 39) (also Order		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 90.65
29	2149120		Support, Heater		Appelez-nous	-
30	2160498		Unit Mounting Frame		Appelez-nous	-
31	940073		Clip		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2158987		Heater, Defrost		Appelez-nous	-
34	2154087		Tube, Discharge Assembly		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
37	489387		Screw		Appelez-nous	-
38	2154038		Tube, Suction		Appelez-nous	-
39	2162067		Grommet		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	2169417		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	2160505		Cover, Unit Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
46	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	681390		Screw   (Replaces: 489099)				$ 13.71
50	1105612		Guard, Fan				$ 42.61
51	2154119		Drain Extension		Appelez-nous	-
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	876764		Valve, Access(3/16``)			Immediately	$ 95.92
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 137.25
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
54	1118805		Support-evaporator (right Side)		Appelez-nous	-
54	2159708		Support-evaporator (left Side)		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 134.49
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
54	978028		Valve, Access (1/2)		Appelez-nous	-
