SELECT A DIAGRAM

01 - Top And Cabinet, Literature


02 - Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Control Panel


07 - Water System


08 - Gearcase


09 - Brake And Drive Tube


10 - Wiring Harness


11 - Miscellaneous, Optional

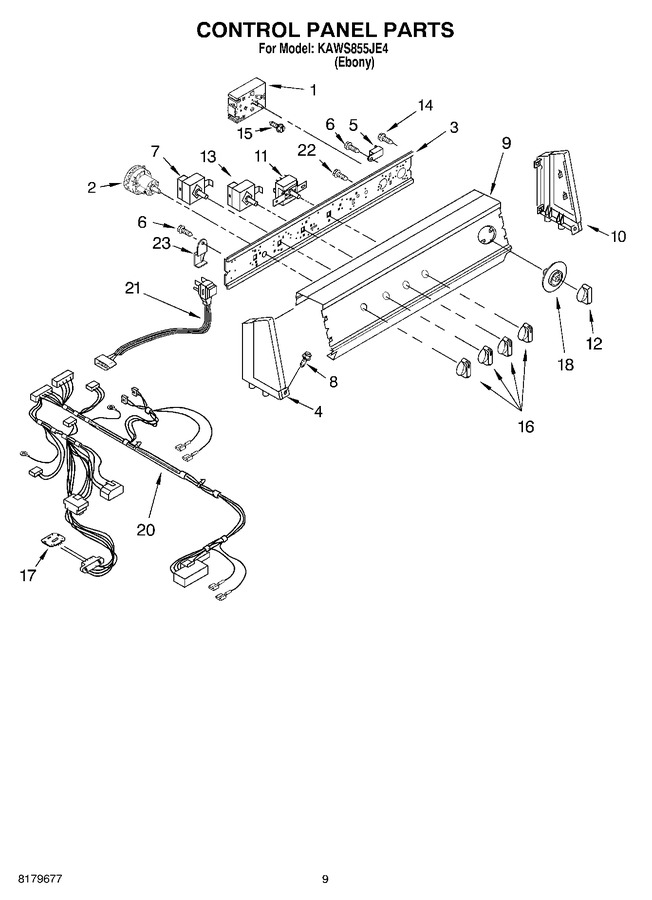

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3954915		Timer, Control (60 Hz) (motor Not Serviced)				$ 216.34
2	W10339326		Switch, Water Level   (Replaces: 3950420)			Immediately	$ 79.17
3	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 109.80
4	3954772		Cap, End (l.h.)		Appelez-nous	-
5	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.43
7	3950354		Switch, Water Temperature		Appelez-nous	-
8	WP388326		Screw   (Replaces: 388326)				$ 8.36
9	3952548		Panel, Console		Appelez-nous	-
10	3954771		Cap, End (r.h.)		Appelez-nous	-
11	3952578		Switch, Rotary				$ 93.94
12	8529311		Knob, Timer				$ 50.98
13	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 119.39
14	WP3351614		Screw, 10-24 X 1/2   (Replaces: 90864)			Immediately	$ 6.57
15	WP3400818		Screw, Timer   (Replaces: 3400818)				$ 7.93
16	3949702		Knob, Control		Appelez-nous	-
17	3407125		Control, Etc		Appelez-nous	-
18	8274412		Dial, Timer				$ 22.89
20	3955722		Harness, Wire		Appelez-nous	-
21	W10820044		Cord, Power   (Replaces: 3948063)				$ 134.88
22	3400073		Screw, Ground		Appelez-nous	-
23	8283343		Retainer, Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
