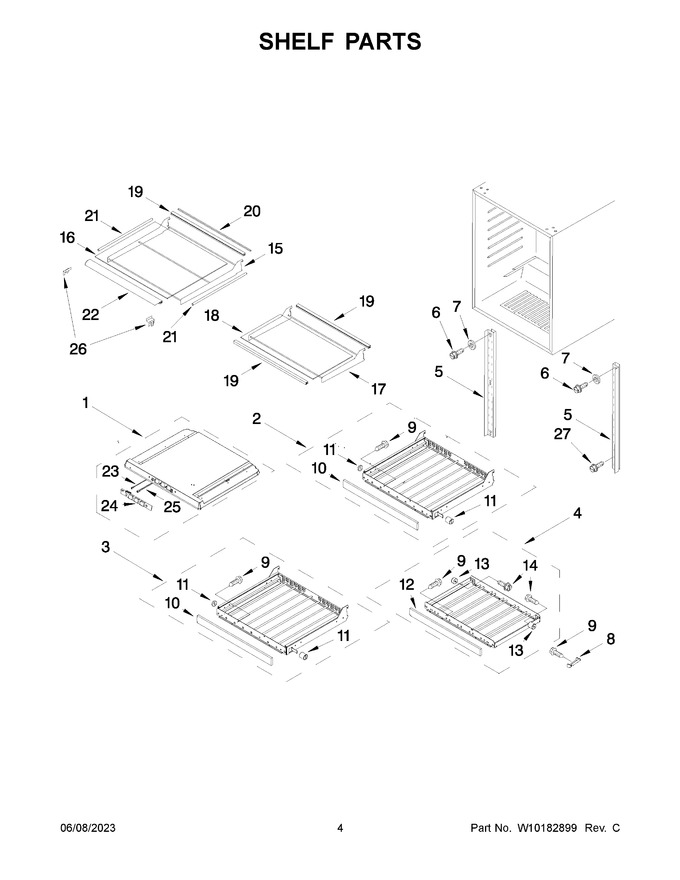

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Shelf Parts


04 - Door Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10239392		Temperature Separator Kit   (Replaces: W10239392)				$ 508.28
2	4344844		Wine Rack, Top		Appelez-nous	-
3	4344845		Wine Rack, Middle		Appelez-nous	-
4	W10187313		Wine Rack, Lower		Appelez-nous	-
5	4344842		Ladder, Shelf		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	4344850		Stop-roller		Appelez-nous	-
9	4344851		Screw		Appelez-nous	-
10	4344882		Trim, Top And Middle Racks		Appelez-nous	-
11	4344866		Support (support, Bumper)		Appelez-nous	-
12	W10163279		Trim, Lower Rack		Appelez-nous	-
13	4344885		Support, Bumper (left)		Appelez-nous	-
14	4344915		Screw, Right Hand		Appelez-nous	-
15	4344870		Shelf, Large		Appelez-nous	-
16	4344871		Glass, Shelf		Appelez-nous	-
17	4344868		No Description		Appelez-nous	-
18	4344869		Glass, Shelf		Appelez-nous	-
19	4344872		No Description		Appelez-nous	-
20	4344873		Seal, Rear		Appelez-nous	-
21	4344874		Seal, Side				$ 79.82
22	4344875		Seal, Front				$ 36.68
23	4344895		Transformer Cable		Appelez-nous	-
24	4344896		Pcb Display Board		Appelez-nous	-
25	4344897		Cable				$ 34.43
26	4344905		Support, Shelf (large)				$ 34.84
27	W10162986		Screw		Appelez-nous	-
11A	4344867		Support (right)		Appelez-nous	-
13A	4344886		Support, Bumper (support, Rubber)		Appelez-nous	-
14A	4344914		Screw, Left Hand		Appelez-nous	-
5A	4344843		Ladder, Shelf		Appelez-nous	-
