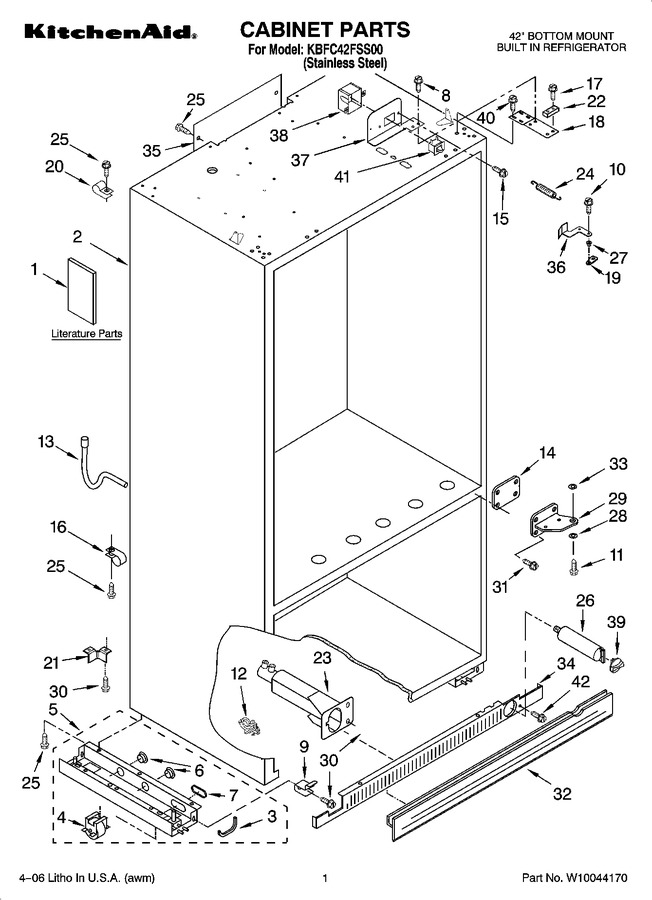

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316852 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2317821 | Use & Care Guide |
|
- | |||||
| 1 | 2309317 | Energy Label |
|
- | |||||
| 1 | 2309309 | Installation Instructions |
|
- | |||||
| 1 | 2317849 | Main Control Service Sheet |
|
- | |||||
| 1 | 2317840 | Modular Icemaker Service Sheet |
|
- | |||||
| 3 | 2005004 | Grommet, Crossover Tube |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 40.81 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: 2004506) |
|
Immediately | $ 344.70 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: 2004505) |
|
$ 343.65 | |||||
| 6 | 2005006 | Grommet, Wiring |
|
- | |||||
| 7 | 2005007 | Grommet, Flexible |
|
- | |||||
| 8 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.20 | |||||
| 9 | 2006442 | Mounting Bracket, Grill |
|
- | |||||
| 10 | W11177574 | Screw (Replaces: W10004850) |
|
$ 13.36 | |||||
| 11 | W10004860 | Screw |
|
Immediately | $ 13.95 | ||||
| 12 | 2004514 | Clamp |
|
- | |||||
| 13 | 2314064 | Tube, Drain |
|
$ 84.49 | |||||
| 14 | 2207470 | Shim-hinge, Door |
|
Immediately | $ 47.04 | ||||
| 15 | WP965173 | Screw,8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 16 | WP488366 | Clamp Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 17 | W11227370 | Screw, Door Stop (Replaces: W10005070) |
|
Immediately | $ 13.42 | ||||
| 18 | W11218690 | Hinge, Door Refrigerator Top (Replaces: 2316759) |
|
Immediately | $ 70.46 | ||||
| 19 | 2316860 | Cam-closer, Door |
|
- | |||||
| 20 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 21 | 2006617 | Bracket, Support Door |
|
- | |||||
| 22 | W11403572 | Stop, Door (Replaces: 2316758) |
|
Immediately | $ 63.43 | ||||
| 23 | WP2209022 | Housing, Water Filter (Replaces: 2209022) |
|
Immediately | $ 221.90 | ||||
| 24 | W11805224 | Spring, Door Closure (Replaces: 2221242) |
|
- | |||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 26 | 2255709 | Filter, Water |
|
- | |||||
| 27 | WP2316859 | Bushing-arm, Extension (Replaces: 2316859) |
|
Immediately | $ 48.78 | ||||
| 28 | WP2004994 | Bushing, Hinge (2) (lock-adjustable) (Replaces: 2004994) |
|
Immediately | $ 7.55 | ||||
| 29 | W10337505 | Hinge, Bottom Refrigerator Door (Replaces: 2302889) |
|
Immediately | $ 127.19 | ||||
| 30 | WP489464 | Screw 8-18 X 1/2 (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 31 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 7.77 | ||||
| 32 | 2209025B | Skirt, Grille Bottom |
|
$ 48.90 | |||||
| 33 | 2314023 | Bushing, Hinge (2) |
|
$ 43.80 | |||||
| 34 | 2316607B | Grille Base, Front |
|
- | |||||
| 35 | 2215612 | Cover, Air Duct |
|
- | |||||
| 36 | W11298172 | Arm, Extension (left) (Replaces: 2266881) |
|
Immediately | $ 78.69 | ||||
| 36 | W10847927 | Arm, Extension (right) (Replaces: 2266882) |
|
$ 89.92 | |||||
| 37 | W10741111 | Bracket, Switch (right) (Replaces: 2221097) |
|
$ 60.63 | |||||
| 37 | 2221096 | Bracket, Switch (left) |
|
$ 88.07 | |||||
| 38 | 2215938 | Cover, Switch |
|
$ 85.30 | |||||
| 39 | WP2186494B | Cap Water Filter (Replaces: 2186494B) |
|
Immediately | $ 50.27 | ||||
| 40 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 13.30 | ||||
| 41 | W11384469 | Switch, Rocker Arm (2) (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 42 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10005050) |
|
Immediately | $ 7.54 |
