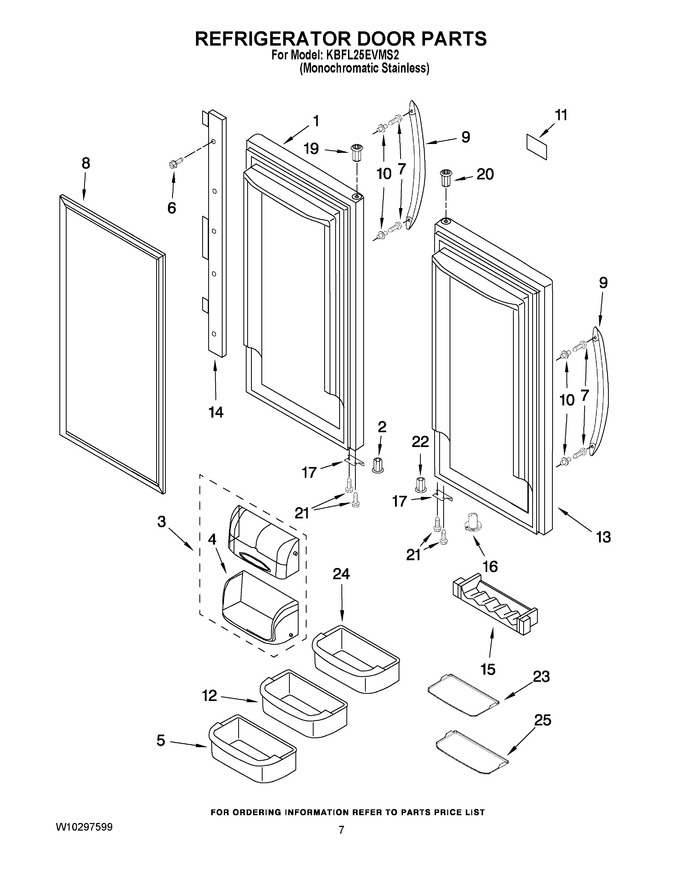

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024072SQ | Door, Left (mono Stainless) |
|
- | |||||
| 2 | 12699301AP | Bushing, Door (bottom Left) (apollo Grey) |
|
$ 13.44 | |||||
| 3 | WP12744905 | Compartment, Door (includes Item 4) (Replaces: 12744905) |
|
$ 102.59 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371195 | Bin, Shelf (medium) (Replaces: 12849125) |
|
Immediately | $ 78.63 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | WP3387230 | Screw (Replaces: 3196181) |
|
Immediately | $ 7.69 | ||||
| 8 | W10830162 | Gasket, Door (apollo Grey) (Replaces: W10179332) |
|
Immediately | $ 223.74 | ||||
| 9 | WPW10314517K | Door Handle (stainless) (Replaces: W10119644) |
|
$ 219.03 | |||||
| 10 | 12691403 | Stud, Handle |
|
- | |||||
| 11 | W10046610 | Nameplate (apollo Grey) |
|
$ 33.40 | |||||
| 12 | WPW10289498 | Bin, Shelf (2) (large) (Replaces: 12699210SP) |
|
$ 114.92 | |||||
| 13 | 13024074SQ | Door, Right (mono Stainless) |
|
- | |||||
| 14 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12732501AP) |
|
$ 170.11 | |||||
| 15 | WP67005626 | Caddy, Can (Replaces: 12690102) |
|
$ 73.34 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 17 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 21.20 | ||||
| 19 | 12395501AP | Bushing, Door Upper Left (apollo Grey) |
|
$ 12.05 | |||||
| 20 | 10961006AP | Bushing, Door (upper Right) (apollo Grey) |
|
$ 8.69 | |||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 22 | 12028601AP | Bushing, Door (lower Right) (apollo Grey) |
|
$ 5.71 | |||||
| 23 | W11402028 | Gripper, Gallon (Replaces: 12567320SP) |
|
Immediately | $ 80.77 | ||||
| 24 | WPW10371195 | Bucket, Medium (Replaces: 12849125SP) |
|
Immediately | $ 78.63 | ||||
| 25 | WPW10450021 | Gripper, Medium (Replaces: 12567321SP) |
|
Immediately | $ 90.84 |
