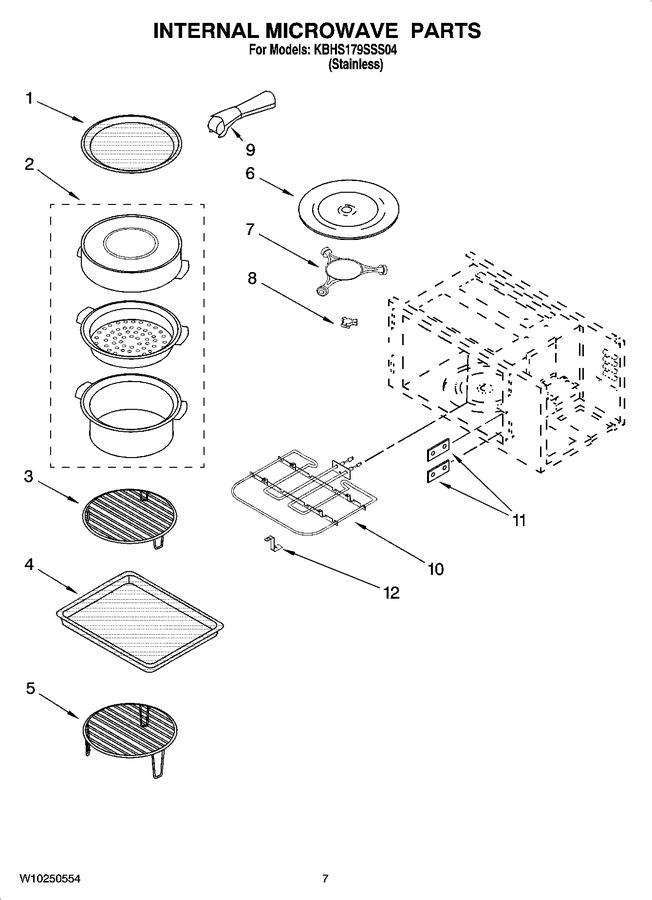

05 - Internal Microwave Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11512490		Crisp Plate   (Replaces: W10120480)			Immediately	$ 114.82
2	W10660052		Steamer   (Replaces: W10120484)			Immediately	$ 27.02
3	4452220		Rack, Convection				$ 153.33
4	W11512489		Plate, Baking   (Replaces: W10120486)				$ 87.80
5	W11175831		Rack   (Replaces: W10120483)				$ 40.39
6	W11373838		Turntable   (Replaces: 8205676)			Immediately	$ 79.52
7	W11110134		Ring   (Replaces: 8205678)			Immediately	$ 66.60
8	WPW10776938		Drive, Turn Table   (Replaces: 8205677)			Immediately	$ 26.52
9	W10851464		Handle, Pan   (Replaces: W10120481)				$ 23.46
10	W10776940		Grill Heater   (Replaces: W10120226)				$ 339.69
11	W10915651		Cover, Plates (2)   (Replaces: W10120230)			Immediately	$ 80.01
12	W11724411		Bracket, Mounting   (Replaces: W10120232)			Immediately	$ 54.42
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4450800		Screw, Ground				$ 12.12
	W10140600		Conduit		Appelez-nous	-
	4452400		Lead, Ground Strap				$ 40.88
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 25.05
	350930		Paint, Spray (white)			Immediately	$ 36.11
	261900		Paint, Spray (citrine White)				$ 53.90
	285006		Paint, Spray (black)   (Replaces: 830864)				$ 53.90
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
	8304442		Harness, Main				$ 56.96
	8304373		Harness, Communication				$ 34.34
	W11209404		Connector, Flex   (Replaces: W10155291)				$ 107.10
