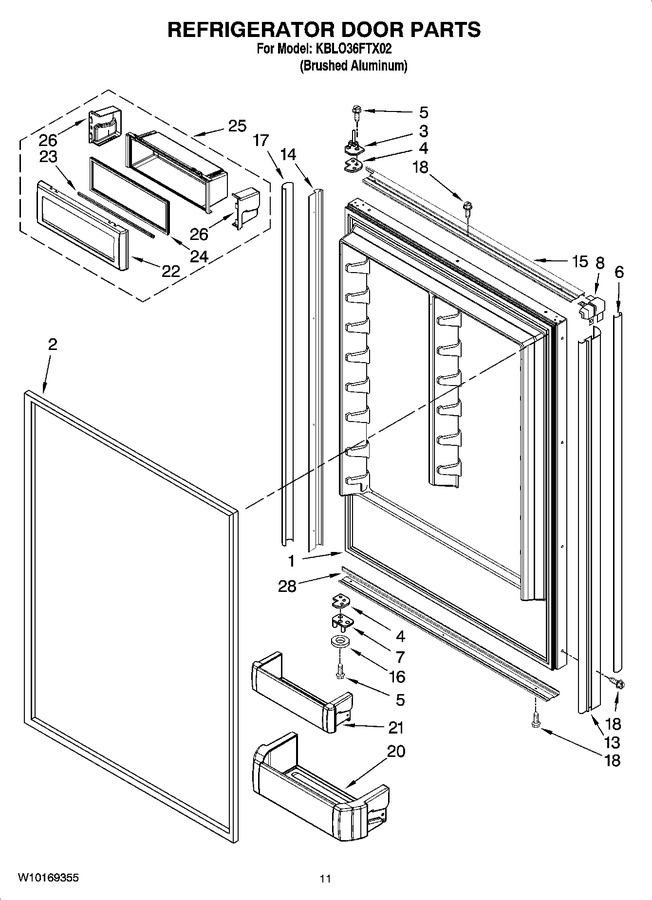

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309390 | Door, Refrigerator (includes Item 2) |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 295.47 | |||||
| 3 | 2256384 | Hinge Assembly, Top |
|
$ 69.79 | |||||
| 4 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | WP8533980 | Screw, 10-32 X 3/4 (Replaces: 8533980) |
|
Immediately | $ 77.98 | ||||
| 6 | 2209084S | Cover-trim Handle Side (rc) |
|
$ 123.06 | |||||
| 7 | 2256281 | Bottom Hinge Assembly |
|
$ 77.40 | |||||
| 8 | 2207457 | Trim, Corner (2) |
|
$ 51.41 | |||||
| 13 | 2309475 | Trim Door |
|
$ 305.29 | |||||
| 14 | 2309476 | Trim-door, Side (hinge Side) |
|
- | |||||
| 15 | 2309473 | Trim-door, Top |
|
$ 260.00 | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 17 | 2266942S | Cover-trim Hinge Side (rc) |
|
$ 97.89 | |||||
| 18 | WP8281250 | Screw 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.28 | |||||
| 20 | W10323749 | Shelf, Door (gallon) (Replaces: 2307975) |
|
$ 123.16 | |||||
| 21 | W11590561 | Shelf, Door (4) (Replaces: 2222777) |
|
$ 84.81 | |||||
| 22 | 2309255 | Door, Utility Bin |
|
$ 43.26 | |||||
| 23 | 2309256 | Rail, Lid |
|
- | |||||
| 24 | 2309257 | Gasket, Utility Bin |
|
- | |||||
| 25 | W10323044 | Bin, Utility (Replaces: 2309252) |
|
$ 119.32 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: 2222920) |
|
$ 7.74 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: 2222919) |
|
$ 7.74 | |||||
| 28 | 2309474 | Trim-door, Bottom |
|
$ 234.22 |
