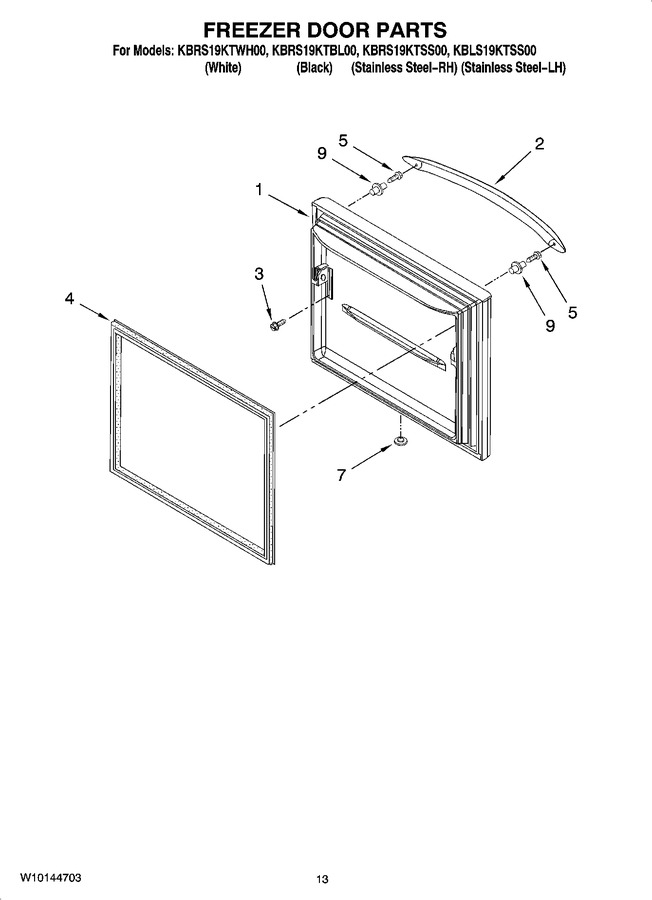

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138336 | Freezer Door (w/ Insulation) (white) |
|
- | |||||
| 1 | W10138322 | Freezer Door (w/ Insulation) (black) |
|
- | |||||
| 1 | W10135748 | Freezer Door (w/ Insulation) (stainless Steel) |
|
- | |||||
| 2 | WPW10314515 | Handle, Door (white) (Replaces: W10119642) |
|
$ 238.49 | |||||
| 2 | W10119643 | Handle, Door (black) |
|
- | |||||
| 2 | WPW10314517K | Handle, Door (stainless Steel) (Replaces: W10119644) |
|
$ 243.37 | |||||
| 3 | 12991101 | Screw (Replaces: 67006408) |
|
$ 13.47 | |||||
| 4 | WPW10443311 | Gasket, Door (white) (Replaces: W10130150) |
|
Immediately | $ 316.65 | ||||
| 4 | WPW10436247 | Gasket, Door (black) (Replaces: 12683816B) |
|
Immediately | $ 365.98 | ||||
| 5 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 7 | 10712401 | Plug, Vent (2) (white) |
|
$ 7.79 | |||||
| 7 | 67004838 | Plug, Vent (2) (black) |
|
$ 11.21 | |||||
| 9 | 67004790 | Stud, Handle |
|
$ 9.66 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 799340 | Paint, Bulk (1 Qt.) (black (uncut)) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 4396418 | Complete Icemaker Kit (ic11b) (Replaces: 67001740) |
|
$ 383.28 | ||||||
| D7824706Q | Complete Icemaker Assembly |
|
Immediately | $ 167.35 | |||||
| 4396920 | Cleaner, S.steel |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 94.14 |
