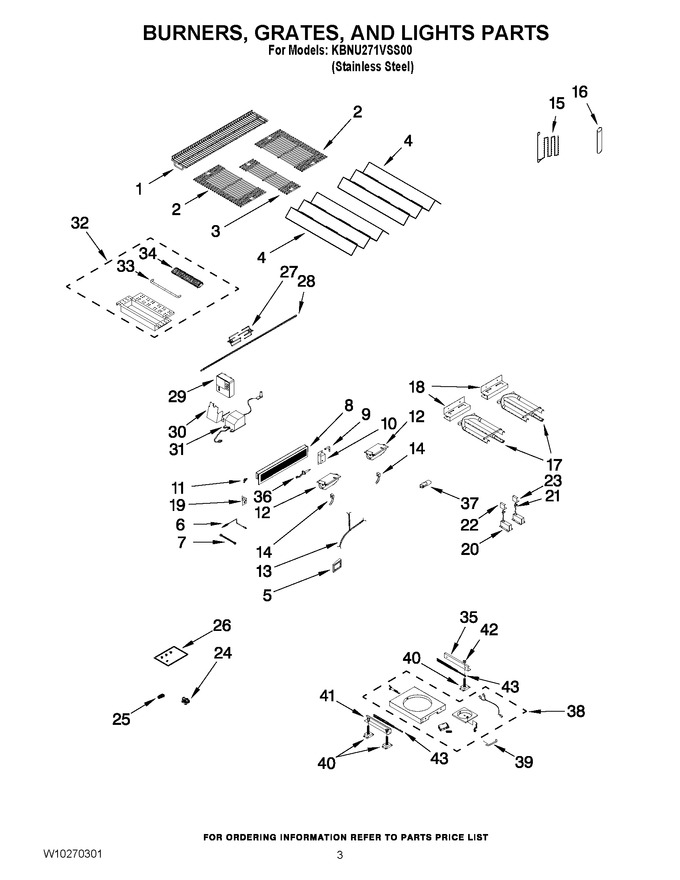

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128611		Rack, Warming		Appelez-nous	-
2	W10247081		Rack, Large		Appelez-nous	-
3	W10244176		Rack, Small		Appelez-nous	-
4	W10244180		Plate, Sear		Appelez-nous	-
5	W10134808		Housing, Lamp		Appelez-nous	-
6	W10128622		Thermocouple, Rear Burner		Appelez-nous	-
7	W10128623		Flex Tube, Rear Burner		Appelez-nous	-
8	W10128624		Burner, Rear				$ 216.60
9	W10128625		Bracket, Rear Thermocouple		Appelez-nous	-
10	W10128626		Cover, Rear Thermocouple		Appelez-nous	-
11	W10246966		Orifice, Rear Burner		Appelez-nous	-
12	W10140242		Light, Grill		Appelez-nous	-
13	W10128630		Harness, Wire Lights		Appelez-nous	-
14	W10128631		Socket, Light		Appelez-nous	-
15	W10128704		Rod, Lighting		Appelez-nous	-
16	W10128703		Bag, Lighting Rod		Appelez-nous	-
17	W10128775		Burner, Main				$ 288.82
18	W10244202		Bracket,main Brnr				$ 27.50
19	W10244185		Bracket, Igniter Rear Burner		Appelez-nous	-
20	W10244197		Bracket, Igniter Front Burners		Appelez-nous	-
21	W10247024		Igniter, Hot Surface		Appelez-nous	-
22	W10244196		Collector,gas Left		Appelez-nous	-
23	W10244198		Collector, Gas Right		Appelez-nous	-
24	WPW10132702		Regulator (ng)   (Replaces: W10132702)				$ 322.11
25	W10140747		Connector, Ng		Appelez-nous	-
26	W10247143		Kit, Orifice Ng		Appelez-nous	-
27	W10247150		Fork, Spit		Appelez-nous	-
28	W10247112		Rod, Spit		Appelez-nous	-
29	W10167017		Motor, Rotisserie		Appelez-nous	-
30	W10247113		Bracket, Motor		Appelez-nous	-
31	WPW10247115		Transformer, Rotisserie   (Replaces: W10247115)				$ 188.98
32	W10244190		Box, Smoker		Appelez-nous	-
33	W10134791		Handle, Smoker		Appelez-nous	-
34	W10134790		Grate, Smoker		Appelez-nous	-
35	W10247142		Bracket, Right		Appelez-nous	-
36	W10298673		Ignitor, Hot		Appelez-nous	-
37	8204670		Bulb, Light			Immediately	$ 27.23
38	W10291260		Load Cell Kit And Processor		Appelez-nous	-
39	W10247140		Handle, Tray		Appelez-nous	-
40	W10247139		Nut, Adjustable		Appelez-nous	-
41	W10247137		Bracket, Left		Appelez-nous	-
42	W10247138		Bracket, Fixing		Appelez-nous	-
43	W10247141		Slide, Tray		Appelez-nous	-
