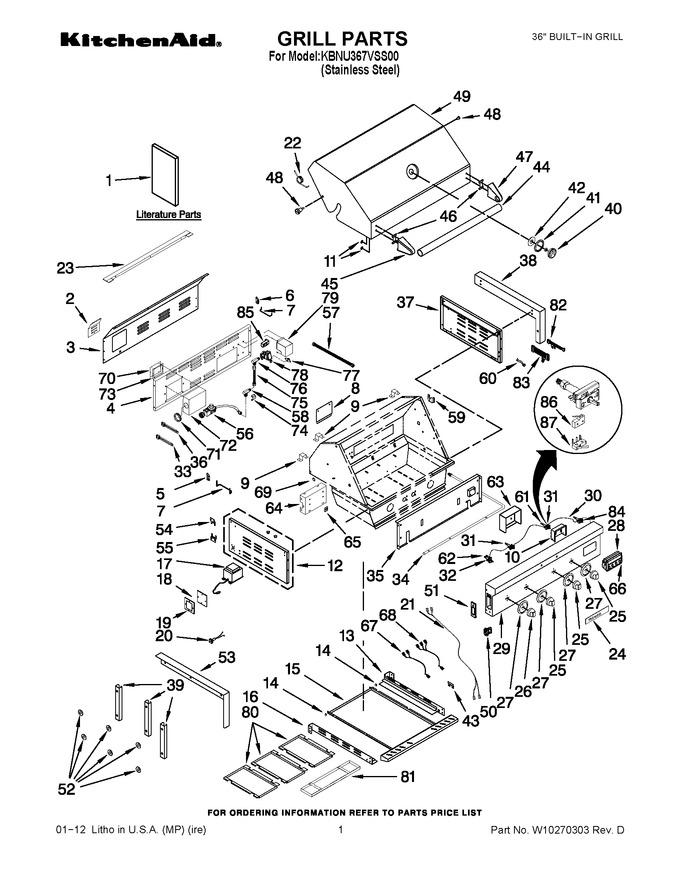

01 - Grill Parts


02 - Burners, Grates, And Lights Parts


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110724		Use & Care Guide		Appelez-nous	-
1	W10110730		Conversion Instr. (lp To Natural)		Appelez-nous	-
2	W10128619		Cover, Rear		Appelez-nous	-
3	W10247106		Panel, Rear		Appelez-nous	-
4	W10247181		Panel, Access		Appelez-nous	-
5	W10247108		Bracket, Panel (left)		Appelez-nous	-
6	W10247107		Bracket, Panel (right)		Appelez-nous	-
7	W10247109		Bracket, Warming Rack		Appelez-nous	-
8	W10128637		Cover, Access Panel		Appelez-nous	-
9	W10128638		Clip, Wire		Appelez-nous	-
10	W10244955		Box, Display		Appelez-nous	-
11	W10128640		Hole Plug		Appelez-nous	-
12	W10247177		Panel, Side Left		Appelez-nous	-
13	W10246970		Bracket, Grease Tray (right)		Appelez-nous	-
14	W10128655		Roller, Drip Tray				$ 63.78
15	W10247033		Drip Tray Assy (includes Rollers)		Appelez-nous	-
16	W10246971		Bracket, Grease Tray (left)		Appelez-nous	-
17	W10247117		Transformer				$ 234.06
18	W10247120		Cover, Wire Terminal		Appelez-nous	-
19	W10247121		Washer, Terminal		Appelez-nous	-
20	W10247122		Outlet,transformer		Appelez-nous	-
21	W10133876		Harness, Wire Light				$ 44.46
22	W10246962		Spring, Hinge		Appelez-nous	-
23	W10247186		Flange, Back		Appelez-nous	-
24	W10128751		Nameplate		Appelez-nous	-
25	W10128753		Knob, Main Burner		Appelez-nous	-
26	W10128756		Knob, Rear Burner		Appelez-nous	-
27	W10128759		Bezel, Knob		Appelez-nous	-
28	WPW10244945		Display, User   (Replaces: W10244945)				$ 346.19
29	W10357489		Panel, Control		Appelez-nous	-
30	W10291262		Harness, Wire Control		Appelez-nous	-
31	WPW10244954		Valve, Main Brnr   (Replaces: W10244954)				$ 311.24
32	WPW10244951		Valve, Rear Brnr   (Replaces: W10244951)				$ 299.91
33	W10247096		Wire, Load Cell		Appelez-nous	-
34	W10246973		Manifold		Appelez-nous	-
35	W10247184		Baffle, Front		Appelez-nous	-
36	W10247099		Wire, Load Cell		Appelez-nous	-
37	W10247182		Side Panel, Right		Appelez-nous	-
38	W10132701		Flange (rt)		Appelez-nous	-
39	W10132697		Bracket, Flange		Appelez-nous	-
40	W10128777		Thermometer				$ 62.56
41	W10128779		Bezel, Thermometer		Appelez-nous	-
42	W10140257		Washer, Flat		Appelez-nous	-
43	W10246882		Stop, Battery Box		Appelez-nous	-
44	W10133877		Handle, Hood		Appelez-nous	-
45	W10128785		Endcap, Handle (left)		Appelez-nous	-
46	W10128786		Spacer, Handle		Appelez-nous	-
47	W10128787		Endcap, Handle (right)		Appelez-nous	-
48	W10128788		Hinge, Lid				$ 12.14
49	W10247015		Hood		Appelez-nous	-
50	W10246880		Box, Battery		Appelez-nous	-
51	W10246879		Cover, Battery Box		Appelez-nous	-
52	W10132698		Washer		Appelez-nous	-
53	W10132696		Flange (lf)		Appelez-nous	-
54	W10132694		Brkt, Trnsfrmr (top)		Appelez-nous	-
55	W10132695		Brkt, Trnsfrmr (btm)		Appelez-nous	-
56	W10247100		Regulator (lp)		Appelez-nous	-
57	W10244195		Flex Tube, Manifold		Appelez-nous	-
58	W10247104		Connector (brass)		Appelez-nous	-
59	W10247106		Bracket, Spit		Appelez-nous	-
60	W10247126		Wire, Dc Power   (Replaces: W10247133)		Appelez-nous	-
61	W10244950		Valve, Bracket Front, Rear		Appelez-nous	-
62	W10244952		Seal, Valve Front, Rear		Appelez-nous	-
63	W10244956		Box, Ui Inner		Appelez-nous	-
64	W10247145		Box, Processor		Appelez-nous	-
65	W10247146		Insulator, Box		Appelez-nous	-
66	W10244946		Button, Mode		Appelez-nous	-
67	W10247178		Wire, Ac Power		Appelez-nous	-
68	W10247127		Wire, Power Supply		Appelez-nous	-
69	W10247110		Hole, Plug		Appelez-nous	-
70	W10247095		Cover, Box		Appelez-nous	-
71	W10246877		Ring, Rubber		Appelez-nous	-
72	W10247101		Box, Processor		Appelez-nous	-
73	W10247102		Washer, Box		Appelez-nous	-
74	W10247103		Bracket, Tube		Appelez-nous	-
75	W10247105		Flex, Safety		Appelez-nous	-
76	W10244333		Valve, Brass		Appelez-nous	-
77	W10244337		Flange, Safety		Appelez-nous	-
78	WPW10247149		Valve, Safety   (Replaces: W10244334)				$ 226.49
79	W10244336		Box, Insulator		Appelez-nous	-
80	W10244963		Tray, Grease		Appelez-nous	-
81	W10244964		Tray, Grease		Appelez-nous	-
82	W10247179		Wire, Valve		Appelez-nous	-
83	W10247132		Wire, Ui		Appelez-nous	-
84	W10244953		Valve, Sear		Appelez-nous	-
85	N/P		Not Serviced Separately (w10291260 Load Cell Kit & Processor)		Appelez-nous	-
86	W10246888		Switch, Ignitor		Appelez-nous	-
87	W10246889		Switch, Valve Sensor		Appelez-nous	-
