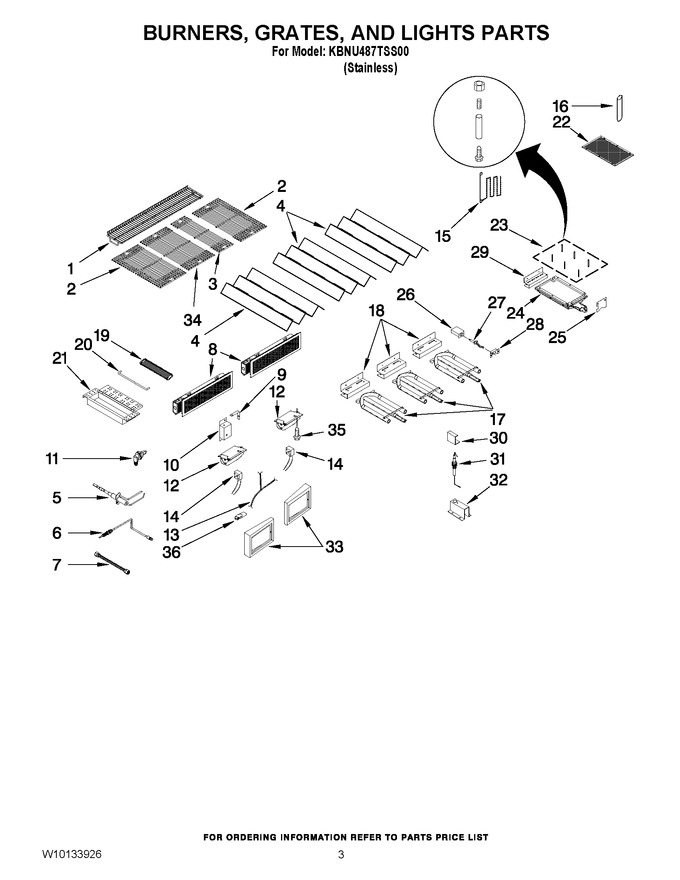

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140223		Rack, Warming		Appelez-nous	-
2	W10133860		Rack, Large		Appelez-nous	-
3	W10133862		Rack, Small		Appelez-nous	-
4	W10128618		Plate, Sear		Appelez-nous	-
5	W10134804		Electrode Kit, Rotisserie		Appelez-nous	-
6	W10128622		Thermocouple, Rear Burner		Appelez-nous	-
7	W10140211		Flex Tube, Rear Burner		Appelez-nous	-
8	W10140227		Burner, Rear		Appelez-nous	-
9	W10134805		Bracket, Rear Thermocouple		Appelez-nous	-
10	W10134806		Cover, Rear Thermocouple (left)		Appelez-nous	-
10	W10140250		Cover, Rear Thermocouple (right)		Appelez-nous	-
11	W10128627		Orifice, Rear Burner		Appelez-nous	-
12	W10140242		Light, Grill		Appelez-nous	-
13	W10140244		Harness, Wire Lights		Appelez-nous	-
14	W10128631		Socket, Light		Appelez-nous	-
15	W10128704		Rod, Lighting		Appelez-nous	-
16	W10128703		Bag, Lighting Rod		Appelez-nous	-
17	W10128775		Burner, Main				$ 288.82
18	W10128776		Bracket, Main Brnr		Appelez-nous	-
19	W10134790		Grate, Smoke Box		Appelez-nous	-
20	W10134791		Handle, Smoke Box		Appelez-nous	-
21	W10141171		Box, Smoke		Appelez-nous	-
22	W10134793		Screen, Sear Brnr		Appelez-nous	-
23	W10137683		Rod, Kit		Appelez-nous	-
24	WPW10134795		Burner, Sear   (Replaces: W10140225)				$ 299.63
25	W10134796		Panel, Sear Brnr		Appelez-nous	-
26	W10134826		Igniter, Gas Coll.		Appelez-nous	-
27	W10141173		Igniter, Sear Brnr		Appelez-nous	-
28	W10134798		Bracket, Sear Ign.		Appelez-nous	-
29	W10134799		Bracket, Sear Brnr		Appelez-nous	-
30	W10134800		Igniter, Gas Coll.		Appelez-nous	-
31	W10141172		Igniter,hot Surfce		Appelez-nous	-
32	W10134802		Bracket, Main Brnr		Appelez-nous	-
33	W10140258		Light Set		Appelez-nous	-
34	W10140222		Rack, Middle		Appelez-nous	-
35	W10140217		Screw, 5/32 X 20		Appelez-nous	-
36	8204670		Bulb, Light			Immediately	$ 27.23

    View Diagram in Separate Window       Print Part List
