SELECT A DIAGRAM
New Model Search:

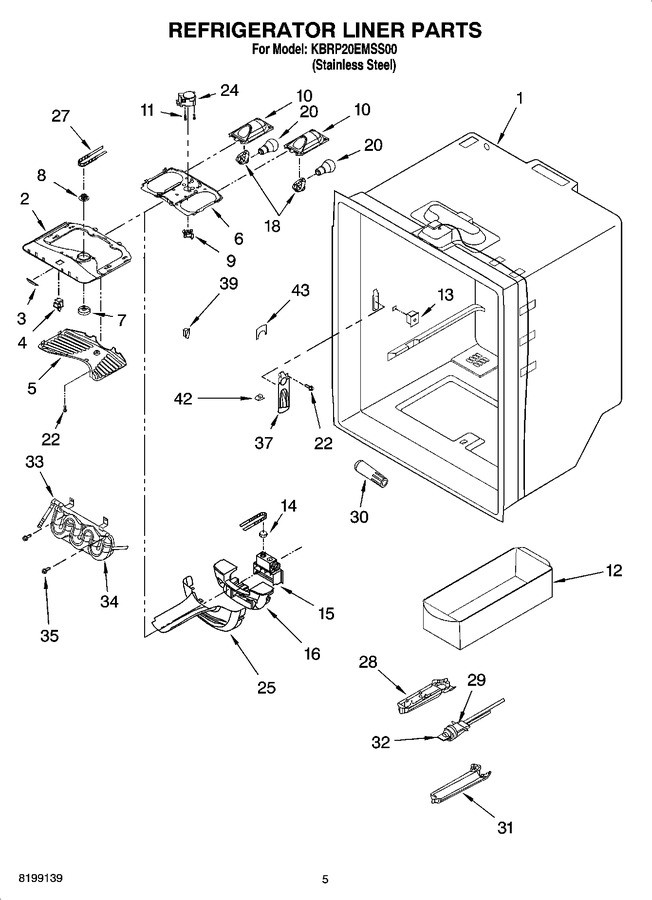

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 8171026 | Housing, Ref. Light |
|
- | |||||
| 3 | 8171027 | Overlay |
|
- | |||||
| 4 | W11384469 | Light Switch (Replaces: 4344571) |
|
Immediately | $ 35.18 | ||||
| 5 | 8170832 | Cover, Ref. Light |
|
- | |||||
| 6 | 8170834 | Housing, Timer |
|
- | |||||
| 7 | 8170835 | Knob, Damper |
|
- | |||||
| 8 | 8170836 | Knob, Gear |
|
- | |||||
| 9 | 8170837 | Gear, Belt |
|
- | |||||
| 10 | 8170838 | Housing, Light |
|
- | |||||
| 11 | 4344395 | Screw (2) |
|
- | |||||
| 12 | W10136387A | Egg Bin (Replaces: 8170709) |
|
$ 17.59 | |||||
| 13 | 8170888 | Grommet, Screw |
|
- | |||||
| 14 | 8170841 | Gear, Damper |
|
- | |||||
| 15 | 8170845 | Control, Damper |
|
- | |||||
| 16 | 8170846 | Insulation, Damper |
|
- | |||||
| 18 | W11447232 | Socket, Light (Replaces: 8170839) |
|
Immediately | $ 12.48 | ||||
| 20 | W11679940 | Light Bulb (Replaces: 8171221) |
|
Immediately | $ 10.67 | ||||
| 22 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 6.57 | ||||
| 24 | WP67001036 | Timer, Defrost (Replaces: 8170840) |
|
Immediately | $ 154.78 | ||||
| 25 | 8171028 | Cover, Control |
|
- | |||||
| 27 | 8171029 | Belt, Damper |
|
- | |||||
| 28 | WP67001668 | Plate, Filter Backing (Replaces: 8171030) |
|
Immediately | $ 15.08 | ||||
| 29 | WP67004106 | Housing, Water Filter (Replaces: 8171248) |
|
Immediately | $ 126.93 | ||||
| 30 | EDR4RXD1B | Net, Water Filter (Replaces: 8171249) |
|
Immediately | $ 49.99 | ||||
| 31 | WP12568001 | Cover, Water Filter (Replaces: 8171033) |
|
Immediately | $ 81.98 | ||||
| 32 | W11395888 | Head, Filter Bypass (Replaces: 8171042) |
|
Immediately | $ 47.93 | ||||
| 33 | WP2300868 | Union, Tube (Replaces: 8208165) |
|
Immediately | $ 33.29 | ||||
| 34 | W11361728 | Reservoir, Water (Replaces: 8171120) |
|
Immediately | $ 155.12 | ||||
| 35 | WP98165 | Screw (Replaces: 8208166) |
|
$ 7.71 | |||||
| 37 | 8171034 | Cover, Dispenser Front |
|
- | |||||
| 39 | WP12575501 | Switch, Limit (Replaces: 8171036) |
|
$ 65.12 | |||||
| 42 | 67002816 | Clip, Waterline (Replaces: 8171038) |
|
$ 17.24 | |||||
| 43 | W11519867 | Cover, Dispenser Top (Replaces: 8208164) |
|
Immediately | $ 24.89 |
