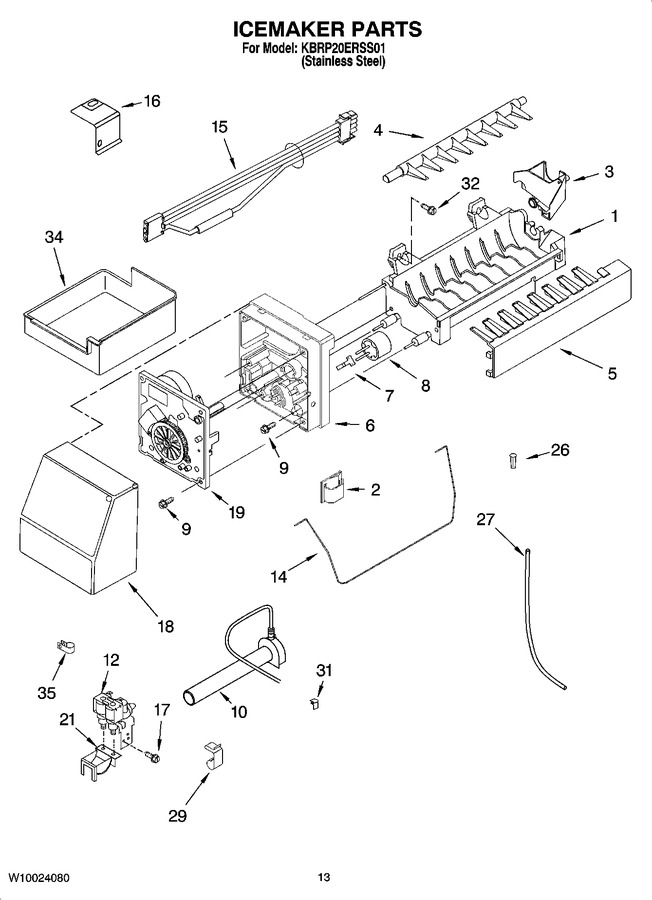

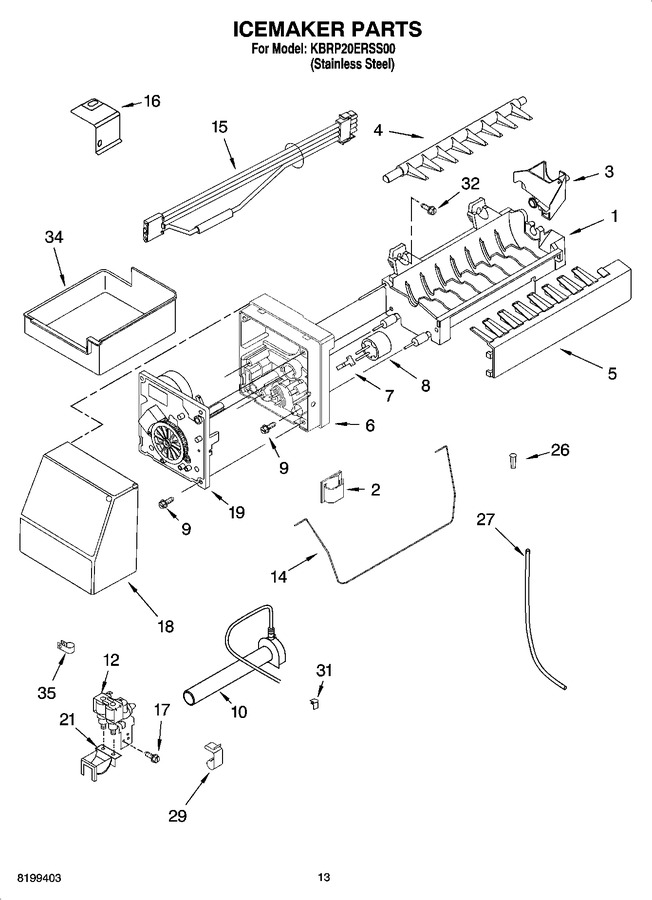

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPM0104106 | Clip (Replaces: 4344265) |
|
$ 7.35 | |||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 8170928) |
|
$ 48.38 | |||||
| 4 | WP627843 | Ejector (Replaces: 8170927) |
|
$ 79.00 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 8170929) |
|
$ 81.32 | |||||
| 6 | WP2195914 | Support & Motor Assembly (Replaces: 8170932) |
|
$ 98.82 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 8170930) |
|
$ 10.44 | |||||
| 9 | WP681249 | Screw (2) (10-32 X 49/64) (Replaces: 8170933) |
|
Immediately | $ 7.43 | ||||
| 10 | W11176463 | Fill Tube (Replaces: 8170414) |
|
Immediately | $ 107.87 | ||||
| 12 | WP67005154 | Valve, Dual Water (Replaces: 8208275) |
|
Immediately | $ 100.52 | ||||
| 14 | WP67004028 | Shutoff Arm (Replaces: 8171289) |
|
Immediately | $ 86.33 | ||||
| 15 | WPD7813010 | Wiring, Harness (Replaces: 8170938) |
|
Immediately | $ 66.57 | ||||
| 16 | WP2256087 | Bracket, Icemaker (Replaces: 8208303) |
|
$ 87.89 | |||||
| 17 | 4344167 | Screw |
|
- | |||||
| 18 | WPW10289690 | Cover (Replaces: 8208238) |
|
$ 7.94 | |||||
| 21 | 12831101 | Bracket, Tube Support (Replaces: 8208157) |
|
$ 11.73 | |||||
| 26 | WPA3223101 | Insert, Tube (Replaces: 4344402) |
|
$ 7.39 | |||||
| 27 | W10823511 | Water Tube (Replaces: 8208151) |
|
Immediately | $ 30.63 | ||||
| 29 | 8208295 | Clip, Water Line |
|
- | |||||
| 31 | WPM0114003 | Clip (Replaces: 4343702) |
|
$ 10.44 | |||||
| 32 | WP98165 | Screw (Replaces: 4343675) |
|
$ 7.71 | |||||
| 34 | WP67001255 | Pan, Ice (Replaces: 8170926) |
|
$ 191.91 | |||||
| 35 | W10833902 | Clamp, Tube (Replaces: 8170942) |
|
$ 10.39 | |||||
| 100 | 4344316 | Plug, Button |
|
- | |||||
| 100 | 4388878 | Tube Clamp |
|
- | |||||
| 100 | 4344549 | Plug, Hole |
|
- | |||||
| 100 | D7824706Q | Complete Icemaker Assembly (Replaces: 8170937) |
|
Immediately | $ 148.87 | ||||
| 100 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 100 | 8170943 | Screw, Bracket |
|
- | |||||
| 100 | 8170944 | Retainer, Tube |
|
- | |||||
| 100 | 681390 | Screw (Replaces: 4343694) |
|
$ 12.34 | |||||
| 100 | 4344548 | Coupling |
|
- |
