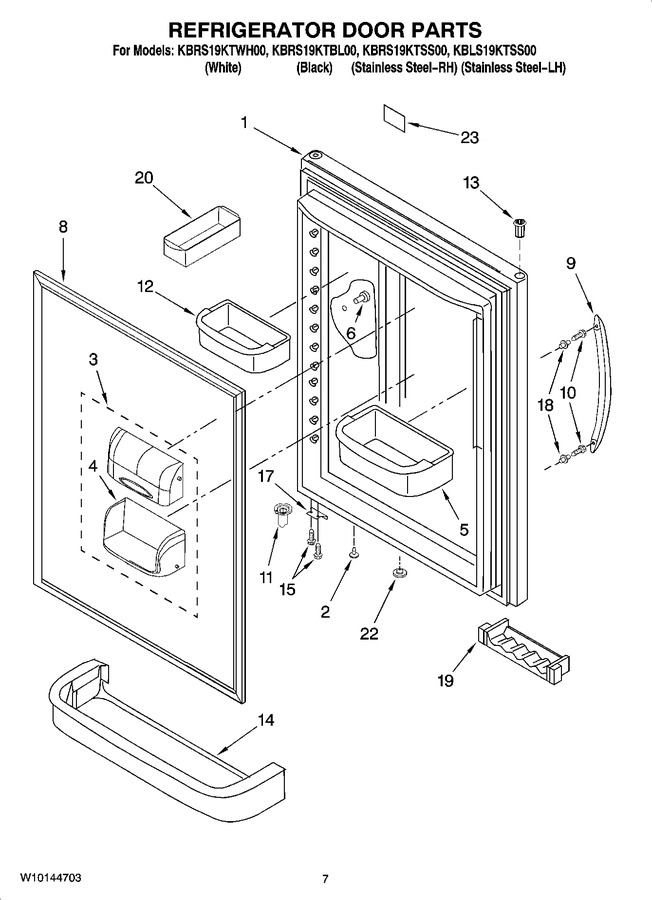

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138312 | Refrigerator Door (w/ Insulation) (black) |
|
- | |||||
| 1 | 13023811S | Refrigerator Door (w/ Insulation) (stainless Steel-rh) |
|
- | |||||
| 1 | 13023812S | Refrigerator Door (w/ Insulation) (stainless Steel-lh) |
|
- | |||||
| 1 | W10138326 | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 2 | WP67001130 | Plug, Vent (white) (Replaces: 67001130) |
|
Immediately | $ 8.21 | ||||
| 2 | WP12246608 | Plug, Vent (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 3 | WP12744905 | Door, Compartment (Replaces: 67003819) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bin, Shelf (2) (medium) (Replaces: 67003777) |
|
Immediately | $ 77.23 | ||||
| 6 | WP67001130 | Plug, Handle Hole (white) (Replaces: 67001130) |
|
Immediately | $ 8.21 | ||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10130148) |
|
Immediately | $ 365.24 | ||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: 12683815B) |
|
$ 362.36 | |||||
| 9 | WPW10314517K | Handle, Door (stainless Steel) (Replaces: W10119644) |
|
$ 243.37 | |||||
| 9 | WPW10314515 | Handle, Door (white) (Replaces: W10119642) |
|
$ 238.49 | |||||
| 9 | W10119643 | Handle, Door (black) |
|
- | |||||
| 10 | 67006806 | Screw |
|
$ 14.02 | |||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 8.15 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 12 | WPW10351081 | Bin, Shelf (2) (small) (Replaces: 67003778) |
|
Immediately | $ 82.77 | ||||
| 13 | 67004978 | Bushing (black) (Replaces: 8171213) |
|
$ 22.10 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 8208208) |
|
$ 8.20 | |||||
| 14 | 67002505 | Trim, Door Shelf |
|
- | |||||
| 15 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 69.29 | |||||
| 18 | 67004790 | Stud, Handle |
|
$ 9.66 | |||||
| 19 | WP67005626 | Caddy, Can (Replaces: 67005626) |
|
$ 81.49 | |||||
| 20 | W10136387A | Bin, Egg (Replaces: W10136387) |
|
$ 19.54 | |||||
| 22 | 10712401 | Plug, Button (white) |
|
$ 7.79 | |||||
| 22 | 67004838 | Plug, Button (black) |
|
$ 11.21 | |||||
| 23 | WPW10243392 | Nameplate (black) (Replaces: W10046640) |
|
$ 73.70 | |||||
| 23 | WPW10243393 | Nameplate (white) (Replaces: W10046670) |
|
$ 69.98 | |||||
| 23 | W10046610 | Nameplate (grey) |
|
$ 33.40 |
