Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10251970 Ladder, Side Special Order $ 26.90

2 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 6.57

3 W10273463 Ladder, Center Special Order $ 26.65

4 W10215666 Screw (2) Special Order $ 8.58

6 W11402522 Shelf, Glide (4)   (Replaces: 12463408) Special Order $ 195.17

7 WP67006877 Glass, Crisper   (Replaces: 12204823) In-Stock Immediately $ 198.43

8 WPW10671240 Frame, Crisper   (Replaces: 12530901SP) In-Stock Immediately $ 151.88

9 WPW10671238 Support, Center Crisper Drawer   (Replaces: 12530701) In-Stock Immediately $ 106.61

10 WP67005864 Slide, Humidity Control   (Replaces: 12530805SP) In-Stock Immediately $ 7.38

13 WP12227302WD Support, Crisper Frame   (Replaces: 12227302WD) Special Order $ 100.44

14 WPW10231481 Trim, Crisper   (Replaces: W10231481) Special Order $ 105.68

15 W10833530 Pan, Crisper (2)   (Replaces: 12724121) Special Order $ 142.75

16 12896401 Basket, Freezer Upper Appelez-nous -
18 12693802 Divider, Upper Basket Appelez-nous -
20 W10503182 Basket, Freezer (lower)   (Replaces: 13016001) Special Order $ 217.77

21 12659608 Divider, Lower Basket Appelez-nous -
22 WP67006877 Glass, Pantry   (Replaces: 12204823) In-Stock Immediately $ 198.43

23 WPW10671240 Frame, Pantry   (Replaces: 12530901SP) In-Stock Immediately $ 151.88

26 W10656984 Trim, Pantry   (Replaces: W10231491) Special Order $ 76.23

29 WP12227302WD Support, Rear   (Replaces: 12227302WD) Special Order $ 100.44

30 W10328331 Drawer, Pantry   (Replaces: 12645022) In-Stock Immediately $ 142.82

31 WP67001721 Support, Pantry (left)   (Replaces: 12531001) In-Stock Immediately $ 7.83

31 WP67001722 Support, Pantry (right)   (Replaces: 12531002) In-Stock Immediately $ 8.04

32 WP67001719 Track, Pantry   (Replaces: 12531901) In-Stock Immediately $ 8.09

33 WP67001716 Hook-ladder (2)   (Replaces: 12531802) In-Stock Immediately $ 10.03


    View Diagram in Separate Window     Print Icon   Print Part List

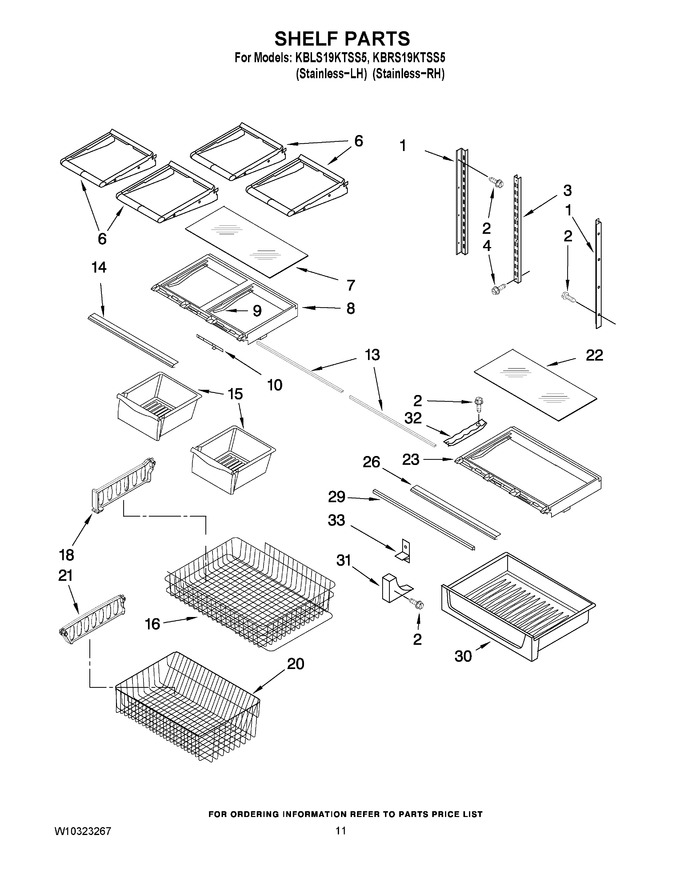

Diagram for KBRS19KTSS5
