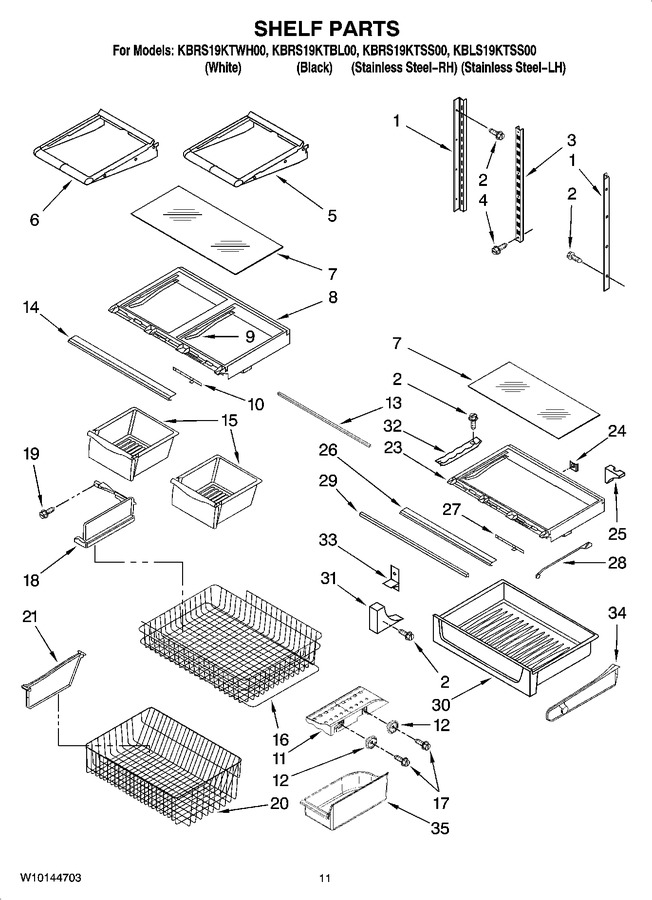

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001302 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 4 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.79 | |||||
| 5 | 67001149 | Shelf, Fixed (2) |
|
$ 92.44 | |||||
| 6 | 67001151 | Shelf, Glide (2) |
|
$ 89.93 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 67006877) |
|
Immediately | $ 220.48 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 168.75 | ||||
| 9 | WPW10671238 | Support, Center Crisper Drawer (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 11 | 12646501 | Rack, Ice |
|
- | |||||
| 12 | 10972101 | Spacer |
|
$ 7.82 | |||||
| 13 | WP12227302WD | Support, Crisper Frame (Replaces: 67001155) |
|
$ 111.60 | |||||
| 14 | 67003884 | Trim, Crisper |
|
- | |||||
| 15 | W10833528 | Pan, Crisper (2) (Replaces: 67002569) |
|
Immediately | $ 156.30 | ||||
| 16 | 67004985 | Basket, Freezer (upper) |
|
$ 99.88 | |||||
| 17 | WP67006908 | Screw (Replaces: 67006908) |
|
Immediately | $ 8.78 | ||||
| 18 | 67004127 | Divider, Upper Basket |
|
$ 10.10 | |||||
| 19 | 67006608 | Screw |
|
- | |||||
| 20 | W10503182 | Basket, Freezer (lower) (Replaces: 67006023) |
|
$ 241.97 | |||||
| 21 | 67006644 | Divider, Lower Basket |
|
- | |||||
| 23 | WPW10671240 | Frame, Pantry (Replaces: 67001153) |
|
Immediately | $ 168.75 | ||||
| 24 | 67002005 | Gasket, Pantry |
|
- | |||||
| 25 | WP12531601 | Air Duct, Pantry (Replaces: 67002004) |
|
$ 11.04 | |||||
| 26 | W10656984 | Trim, Pantry (Replaces: 67007045) |
|
$ 84.70 | |||||
| 27 | 67002002 | Slide, Pantry Control |
|
Immediately | $ 16.04 | ||||
| 28 | 67002003 | Rod, Temperature Control |
|
$ 47.06 | |||||
| 29 | WP12227303WD | Support, Rear (Replaces: 67001059) |
|
$ 111.25 | |||||
| 30 | W10328331 | Pan, Pantry (Replaces: 67007044) |
|
Immediately | $ 158.69 | ||||
| 31 | WP67001721 | Support, Pantry (left) (Replaces: 67001721) |
|
Immediately | $ 8.70 | ||||
| 31 | WP67001722 | Support, Pantry (right) (Replaces: 67001722) |
|
Immediately | $ 8.93 | ||||
| 32 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 33 | WP67001716 | Hook, Ladder (2) (Replaces: 67001716) |
|
Immediately | $ 11.14 | ||||
| 34 | 67001923 | Divider, Pantry |
|
$ 21.04 | |||||
| 35 | WP67001255 | Pan, Ice Drawer (Replaces: 67001255) |
|
$ 213.23 |
