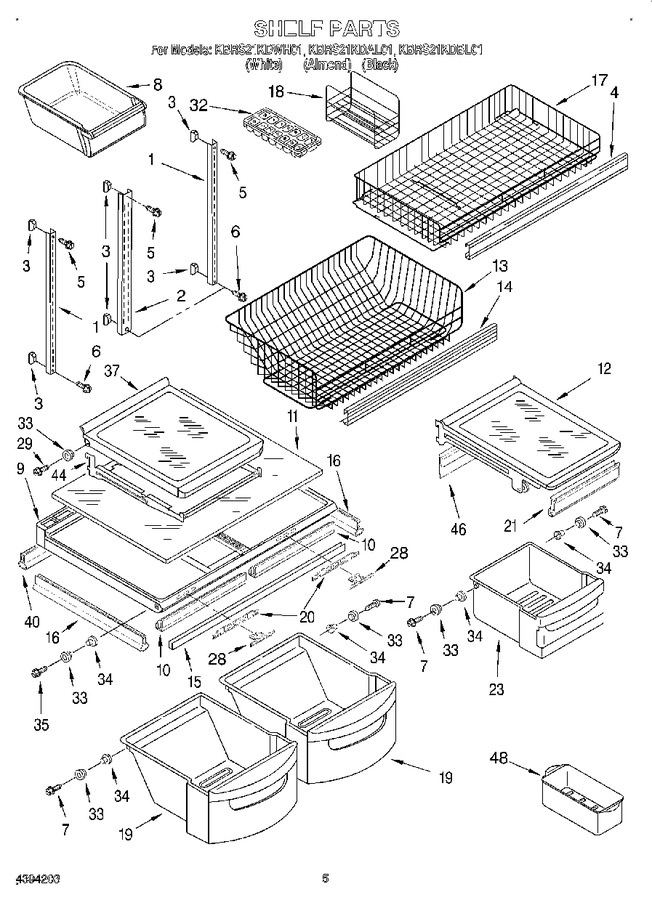

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support				$ 28.22
4	2179513		Trim, Basket		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.70
7	WP489261		Screw   (Replaces: 489261)				$ 7.50
8	2173688		Ice Cube Pan		Appelez-nous	-
9	2174130		Pan Cover & Roller Assembly		Appelez-nous	-
10	WP1125528		Gasket, Pan Cover Front   (Replaces: 2179213)				$ 145.52
11	2174142		Glass, Crisper Cover		Appelez-nous	-
12	2173902		Pan Shelf & Roller Assembly		Appelez-nous	-
13	2152799		Freezer Basket, (lower)		Appelez-nous	-
14	2179512		Trim, Basket		Appelez-nous	-
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 91.87
16	2179252		Gasket, Pan Cover (side)		Appelez-nous	-
17	2179448		Freezer Basket, (upper)		Appelez-nous	-
18	2152823		Rack, Ice Tray		Appelez-nous	-
19	2179229		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174257		Slide, Humidity		Appelez-nous	-
21	2174398		Gasket-front		Appelez-nous	-
23	2179232		Meat Pan Assy.		Appelez-nous	-
28	2174253		Button, Humidity Control		Appelez-nous	-
29	489439		Screw		Appelez-nous	-
32	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 43.06
33	2174388		Roller		Appelez-nous	-
34	2174478		Eyelet, Roller				$ 5.70
35	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
37	2174015		Shelf, Spillguard		Appelez-nous	-
40	2179216		Gasket, Pan Cover-rear		Appelez-nous	-
44	2174017		Frame & Roller Assembly				$ 132.05
46	2179564		Gasket-rear		Appelez-nous	-
48	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
48	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 17.59
48	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
48	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
48	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
48	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
48	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
48	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
48	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
48	2180010		Door Reversal Instructions		Appelez-nous	-
48	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
48	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
48	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
48	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
48	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	LIT2176897		Service & Wiring Sheet		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	LIT2173940		Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2180117		Energy Label (english)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	W11729596		Kims9   (Replaces: 2155468)			Immediately	$ 139.50
	833938		Kit, Terminal Connector				$ 7.62
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
