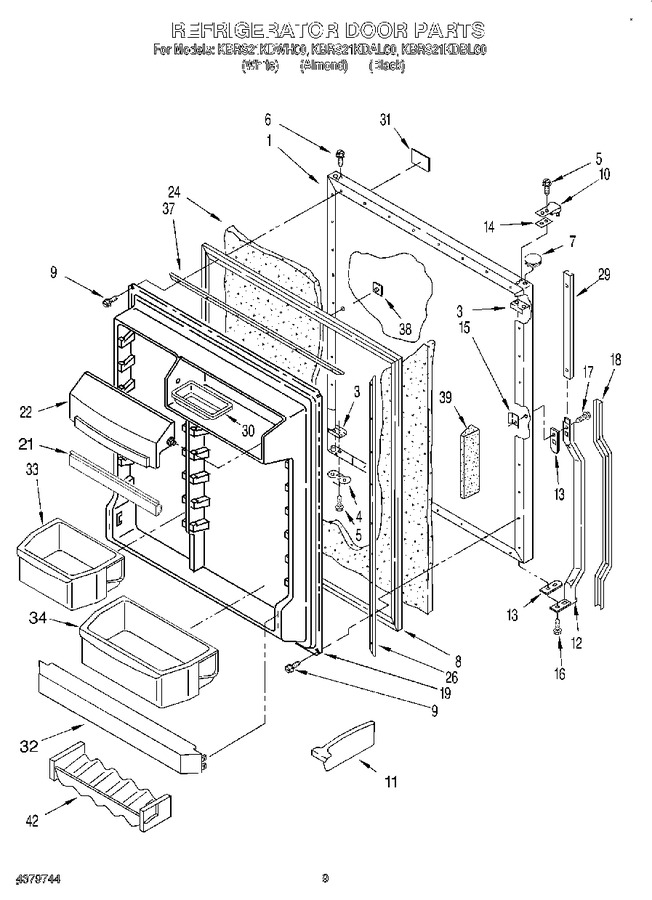

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174866		Panel, Refrigerator Door (also Order Item 24) (white)		Appelez-nous	-
1	2174869		Panel, Refrigerator Door (also Order Item 24) (black)		Appelez-nous	-
1	2174868		Panel, Refrigerator Door (also Order Item 24) (almond)		Appelez-nous	-
3	2159253		Plate, Tap (4)		Appelez-nous	-
4	2157749		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 21.79
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
8	2177231		Door Gasket, Magnetic (gray)		Appelez-nous	-
8	2160439		Door Gasket, Magnetic (black)		Appelez-nous	-
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
9	WP681414		(repair)   (Replaces: 488552)			Immediately	$ 7.62
10	1107236		Handle End		Appelez-nous	-
11	2171283		Divider, Door Bin (2)		Appelez-nous	-
12	2161519		Handle Assembly		Appelez-nous	-
13	2161521		Spacer, Handle		Appelez-nous	-
14	2151813		Shim, Handle Door		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.09
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.18
17	WP488163		Screw, 8 X 1/2   (Replaces: 488540)				$ 7.13
18	2161796		Insert, Handle (black Model)		Appelez-nous	-
18	2161523		Insert, Handle (white)		Appelez-nous	-
18	2161524		Insert, Handle (almond)		Appelez-nous	-
19	2160429		Interior Door Panel		Appelez-nous	-
21	2159124		Gasket, Door Compartment		Appelez-nous	-
22	2171079		Compartment Door		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
26	986008		Gasket Retainer, Side (2)		Appelez-nous	-
29	2161522		Retainer Insert		Appelez-nous	-
30	1125936		Butter, Tray		Appelez-nous	-
31	2168800		Nameplate (white Model)		Appelez-nous	-
31	2168801		Nameplate (almond Model)		Appelez-nous	-
31	2168992		Nameplate (black)		Appelez-nous	-
32	2171358		Trivet, Door		Appelez-nous	-
33	2171066		Bin, Door Shelf Narrow (3)		Appelez-nous	-
34	2171063		Bin, Door Shelf		Appelez-nous	-
37	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
38	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
38	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 6.85
38	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
39	1126161		Reinforcement		Appelez-nous	-
42	1125981		Holder, Beverage		Appelez-nous	-
