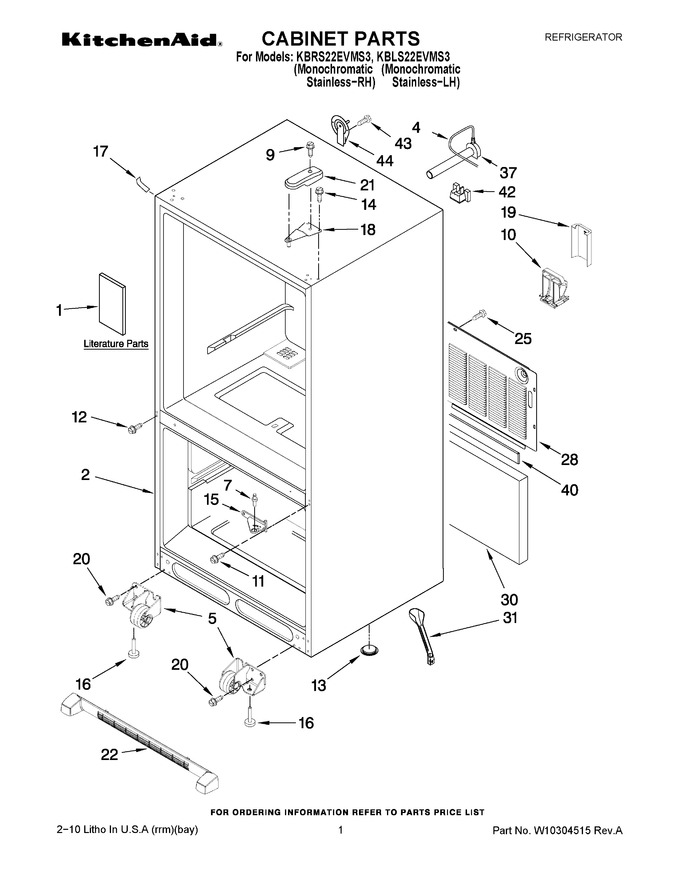

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 1 | W10279330 | Tech Sheet |
|
- | |||||
| 1 | W10212714 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | W11120581 | Tube, Plastic (Replaces: B5705333SP) |
|
$ 112.44 | |||||
| 5 | W11820445 | Roller Foot Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 5 | W11820444 | Roller Foot Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.90 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | 12831101 | Sweep, Dual Tube |
|
$ 11.73 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 13.25 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11689473 | Hinge, Center (apollo Grey) (Replaces: 12607103AP) |
|
$ 62.81 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | WP12566606ED | Hinge, Top Left (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 19 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | W11106366 | Cover, Hinge (apollo Grey) (Replaces: 12477601AP) |
|
$ 68.24 | |||||
| 22 | WPW10534160 | Grille Assembly (apollo Grey) (Replaces: W10236194) |
|
Immediately | $ 65.34 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 28 | W10210980 | Cover, Unit |
|
$ 183.19 | |||||
| 30 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 37 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 107.87 | ||||
| 40 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 42 | 12777701 | Block, Filter |
|
$ 7.17 | |||||
| 43 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 44 | 12726003 | Cover, Water Line |
|
$ 17.27 |
