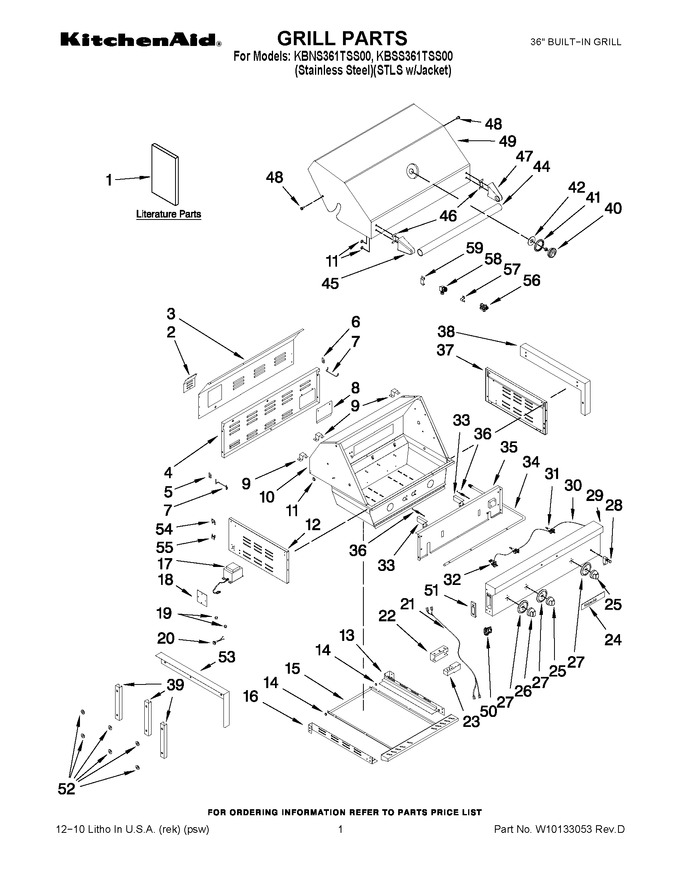

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110724		Use & Care Guide		Appelez-nous	-
1	W10110730		Conversion Instr. (lp To Natural)		Appelez-nous	-
2	W10128619		Cover, Rear		Appelez-nous	-
3	W10133863		Panel, Rear		Appelez-nous	-
4	W10133867		Panel, Access		Appelez-nous	-
5	W10128634		Bracket, Panel Left		Appelez-nous	-
6	W10128635		Bracket, Panel Right		Appelez-nous	-
7	W10128636		Bracket, Warming Rack		Appelez-nous	-
8	W10128637		Cover, Access Panel		Appelez-nous	-
9	W10128638		Clip, Wire		Appelez-nous	-
10	W10133868		Hood Assy		Appelez-nous	-
11	W10128640		Hole Plug		Appelez-nous	-
12	W10132699		Panel, Side Left		Appelez-nous	-
13	W10128644		Bracket, Grease Tray (right)		Appelez-nous	-
14	W10128655		Roller, Drip Tray				$ 63.78
15	W10133870		Drip Tray Assy (includes Rollers)		Appelez-nous	-
16	W10128657		Bracket, Grease Tray (left)		Appelez-nous	-
17	W10281396		Transformer		Appelez-nous	-
18	W10132690		Cover, Wire Terminal		Appelez-nous	-
19	W10132691		Bushing (plastic (no.sb22))		Appelez-nous	-
19	W10132692		Bushing (plastic (no.sb19))		Appelez-nous	-
20	W10133869		Outlet, Transformer		Appelez-nous	-
21	W10133876		Harness, Wire Light				$ 44.46
22	W10128664		Cover, Igniter		Appelez-nous	-
23	W10281246		Igniter		Appelez-nous	-
24	W10128751		Nameplate		Appelez-nous	-
25	W10128753		Knob, Main Burner		Appelez-nous	-
26	W10128756		Knob, Rear Burner		Appelez-nous	-
27	W10128759		Bezel, Knob		Appelez-nous	-
28	W10128761		Switch, Light		Appelez-nous	-
29	W10136433		Panel, Control		Appelez-nous	-
30	W10134817		Harness, Wire Control		Appelez-nous	-
31	WPW10128764		Valve, Main Brnr   (Replaces: W10128764)				$ 299.61
32	W10128766		Valve, Rear Brnr		Appelez-nous	-
33	W10128767		Igniter, Main Gas		Appelez-nous	-
34	W10133871		Manifold		Appelez-nous	-
35	W10133873		Baffle, Front		Appelez-nous	-
36	W10133875		Electrode (main Burner)		Appelez-nous	-
36	WPW10128770		Electrode, Main Burner   (Replaces: W10128770)				$ 20.33
36	W10133874		Electrode (main Burner)		Appelez-nous	-
37	W10132700		Side Panel, Right		Appelez-nous	-
38	W10132701		Flange (rt)		Appelez-nous	-
39	W10132697		Bracket, Flange		Appelez-nous	-
40	W10128777		Thermometer				$ 62.56
41	W10128779		Bezel, Thermometer		Appelez-nous	-
42	W10140257		Insulator, Thermometer(small)		Appelez-nous	-
44	W10133877		Handle, Hood		Appelez-nous	-
45	W10128785		Endcap, Handle (left)		Appelez-nous	-
46	W10128786		Spacer, Handle		Appelez-nous	-
47	W10128787		Endcap, Handle (right)		Appelez-nous	-
48	W10128788		Hinge, Lid				$ 12.14
49	W10133878		Hood		Appelez-nous	-
50	W10128715		Box, Battery		Appelez-nous	-
51	W10128711		Cover, Battery Box		Appelez-nous	-
52	W10132698		Washer		Appelez-nous	-
53	W10132696		Flange (lf)		Appelez-nous	-
54	W10132694		Brkt, Trnsfrmr (top)		Appelez-nous	-
55	W10132695		Brkt, Trnsfrmr (btm)		Appelez-nous	-
56	WPW10132702		Regulator (ng)   (Replaces: W10132702)				$ 322.11
57	W10128747		Fixture, Manifold		Appelez-nous	-
58	W10128748		Connector (brass)		Appelez-nous	-
59	W10128749		Base, Manifold Fixture		Appelez-nous	-
