SELECT A DIAGRAM

01 - Motor And Drive , Lit/optional


02 - Frame


03 - Powerscrew And Ram


04 - Container


05 - Container


06 - Section

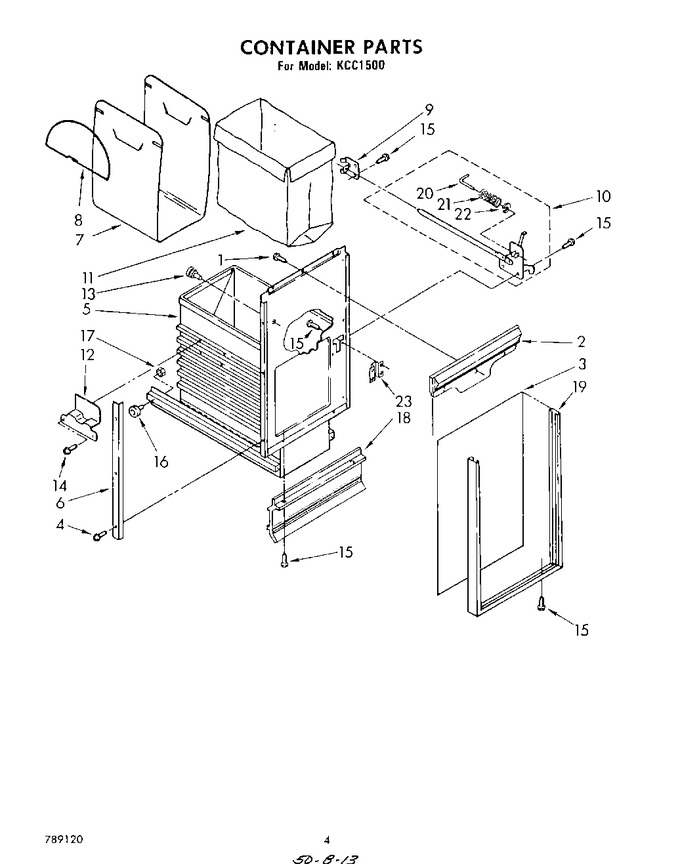

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.56
2	WP608732		Handle, Container   (Replaces: 608769)				$ 237.95
3	780280		Panel, Container (toast & Platinum)		Appelez-nous	-
3	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
3	777941		Panel, Container (white & Black)				$ 36.40
4	776191		Screw, 6-20 X 3/8		Appelez-nous	-
5	675296		Container Assembly		Appelez-nous	-
6	608051		Plate, Trim				$ 23.49
7	13030RP		Carrier, Bag (includes Illus. 8)   (Replaces: 776989)			Immediately	$ 52.50
8	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 33.29
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 88.29
10	675379		Latch Assembly   (Replaces: 775740)				$ 164.28
11	776781		Bag, Refuse		Appelez-nous	-
12	776523		Cam, Actuator				$ 21.17
13	775785		Bumper, Container (2)		Appelez-nous	-
14	WP489069		Screw, 8-18 X 1/2   (Replaces: 777465)			Immediately	$ 7.56
15	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 7.56
16	WP9871602		Container, Bearing Roller   (Replaces: 776261)				$ 12.48
17	WP776356		Locknut, 3/8-24   (Replaces: 776356)				$ 7.68
18	777329		Toe Plate		Appelez-nous	-
19	777345		Trim, Container (front)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 84.42
22	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 56.15
