SELECT A DIAGRAM

01 - Cabinet Parts

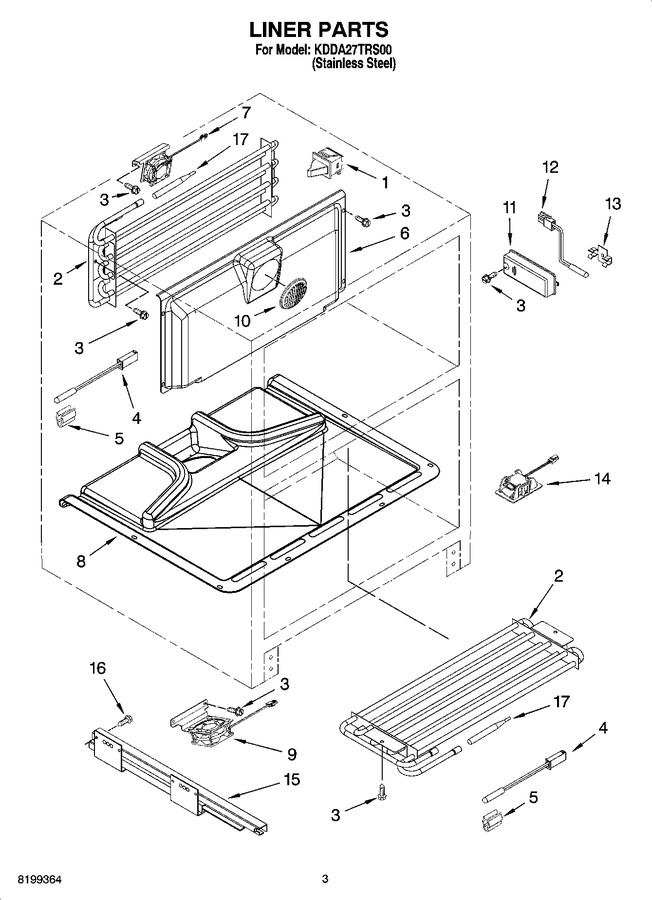

02 - Liner Parts


03 - Drawer Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257999		Switch, Rocker (2)		Appelez-nous	-
2	2257814		Evaporator (2)				$ 211.71
3	WP489478		Screw   (Replaces: 489478)				$ 7.36
4	2258075		Thermistor (evaporator)		Appelez-nous	-
5	2257639		Clip, Thermistor (evaporator)		Appelez-nous	-
6	2258126		Cover, Evaporator (upper)		Appelez-nous	-
7	2258059		Fan, Upper		Appelez-nous	-
8	2258127		Cover, Evaporator (lower)		Appelez-nous	-
9	2258060		Fan, Lower		Appelez-nous	-
10	2258031		Cover, Fan		Appelez-nous	-
11	1116793		Cover, Thermistor (2)				$ 14.63
12	WP2188820		Thermistor (2)   (Replaces: 2188820)			Immediately	$ 27.77
13	2209204		Clip, Thermistor (2)		Appelez-nous	-
14	2258025		Light Assembly (2)		Appelez-nous	-
15	2257883		Slide, Drawer (right (2))		Appelez-nous	-
15	2257882		Slide, Drawer (left (2))		Appelez-nous	-
16	8534081		Screw				$ 7.81
17	2257914		Tube, Capillary To Evaporator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
