View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts

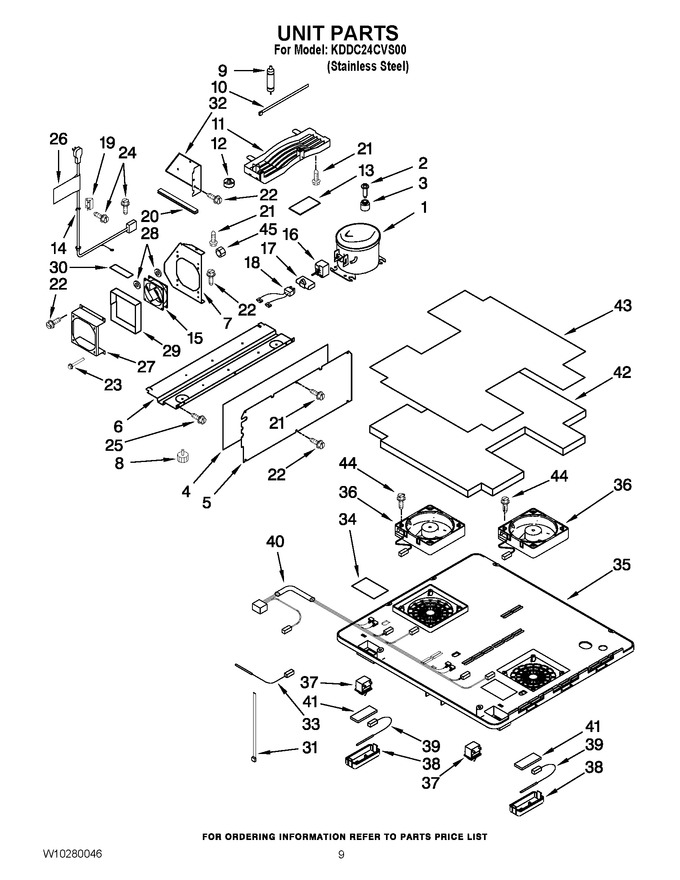

05 - Unit Parts
06 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10287744 | Compressor (Replaces: W10287744) |
|
$ 451.31 | |||||
| 2 | W10772873 | Bolt (Replaces: 4344780) |
|
- | |||||
| 3 | WP4344779 | Grommet (Replaces: 4344779) |
|
$ 7.62 | |||||
| 4 | W10204672 | Rear Insulation |
|
- | |||||
| 5 | W10281501 | Rear Cover |
|
- | |||||
| 6 | W10270491 | Cabinet Base Plate |
|
- | |||||
| 7 | W10204674 | Air Baffle |
|
$ 114.91 | |||||
| 8 | W11106296 | Leg (Replaces: W10270480) |
|
$ 17.13 | |||||
| 9 | W10163273 | Dryer |
|
$ 93.07 | |||||
| 10 | 4344829 | Cable Tie |
|
- | |||||
| 11 | W10163193 | Drain Tray |
|
$ 76.58 | |||||
| 12 | W10163276 | Drain Trap |
|
$ 81.12 | |||||
| 13 | W10163274 | Vibration Rubber |
|
- | |||||
| 14 | WPW10204676 | Power Cord (Replaces: W10204676) |
|
$ 101.72 | |||||
| 15 | W10204677 | Condenser Motor |
|
$ 316.11 | |||||
| 16 | W10287745 | Overload Relay |
|
- | |||||
| 17 | W10287848 | Ptc Thermister |
|
$ 155.99 | |||||
| 18 | W10287954 | Capacitor |
|
- | |||||
| 19 | W10270517 | Clamp, Cord |
|
$ 71.56 | |||||
| 20 | 4344907 | Edge Trim |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344832 | Screw |
|
- | |||||
| 23 | W10270492 | Bolt |
|
- | |||||
| 24 | 4344826 | Screw |
|
$ 15.03 | |||||
| 25 | W10270481 | Bolt |
|
- | |||||
| 26 | 4344913 | Warning Label |
|
- | |||||
| 27 | W10204687 | Fan Cover |
|
- | |||||
| 28 | W10204688 | Fan Bushing |
|
- | |||||
| 29 | W10204689 | Vibration Rubber A |
|
- | |||||
| 30 | W10204690 | Vibration Rubber B |
|
- | |||||
| 31 | 4344829 | Cable Tie |
|
- | |||||
| 32 | 4344773 | Bracket, Timer |
|
- | |||||
| 33 | W10205063 | Defrost Sensor |
|
$ 157.14 | |||||
| 34 | W10205062 | Terminal Protector |
|
- | |||||
| 35 | W10204941 | Fan Cover |
|
$ 132.27 | |||||
| 36 | W10854409 | Motor & Fan (Replaces: W10204942) |
|
Immediately | $ 322.47 | ||||
| 37 | W10270520 | Door Switch |
|
- | |||||
| 38 | W10204945 | Sensor Case |
|
- | |||||
| 39 | WPW10204946 | Temp Sensor (Replaces: W10204946) |
|
$ 90.80 | |||||
| 40 | W10204947 | Wire Harness |
|
- | |||||
| 41 | W10204948 | Sensor Case Seal |
|
- | |||||
| 42 | W10281541 | Insulation |
|
- | |||||
| 43 | W10281542 | Plate Cover |
|
- | |||||
| 44 | W10205061 | Screw |
|
- | |||||
| 45 | W10270493 | Nut |
|
- |
