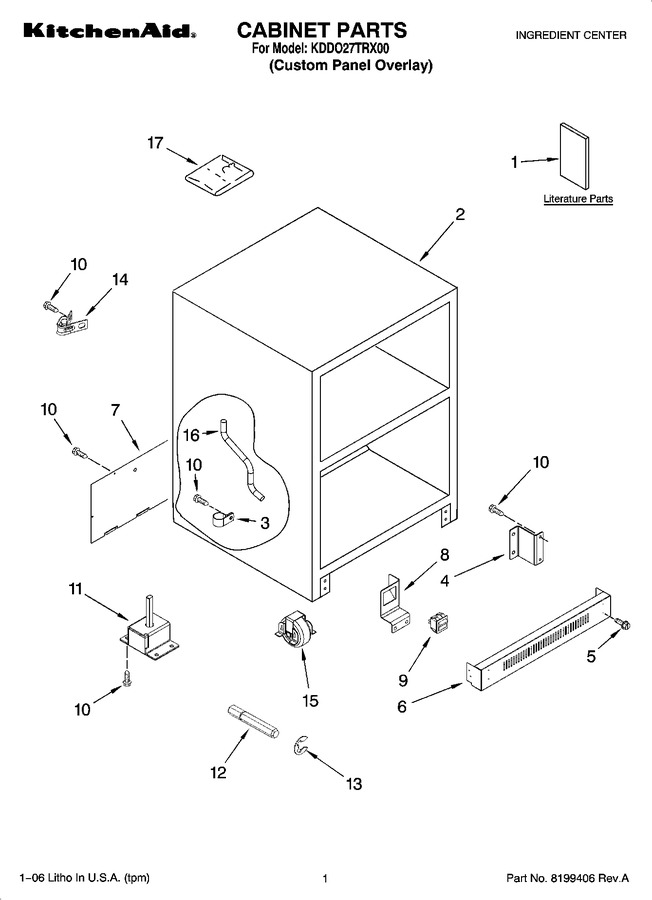

01 - Cabinet Parts
02 - Liner Parts
03 - Drawer Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2258066 | Installation Instructions |
|
- | |||||
| 1 | 2258024 | Use & Care Guide |
|
- | |||||
| 1 | 2258105 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2258067 | Energy Guide |
|
- | |||||
| 3 | 2258085 | Clamp, Drain Tube |
|
- | |||||
| 4 | 2258201 | Bracket, Grille |
|
- | |||||
| 5 | W10851443 | Screw (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 6 | 2257846 | Grille |
|
- | |||||
| 7 | 2257885 | Cover, Unit |
|
- | |||||
| 8 | 2257923 | Bracket, Switch |
|
- | |||||
| 9 | WP2266802 | Switch, Power (Replaces: 2266802) |
|
$ 98.17 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 11 | 2005032 | Leveler Asm (4) |
|
Immediately | $ 180.06 | ||||
| 12 | 2257892 | Rod, Leveler (rear (2)) |
|
- | |||||
| 12 | 2257893 | Rod, Leveler (front (2)) |
|
- | |||||
| 13 | 2006841 | Ring, Retaining |
|
$ 83.39 | |||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 15 | WPW10138054 | Roller (4) (Replaces: 1112023) |
|
$ 40.81 | |||||
| 16 | 2257916 | Tube, Drain |
|
- | |||||
| 17 | 2258203 | Kit, Mounting (4 Brackets & 16 Screws) |
|
- |
