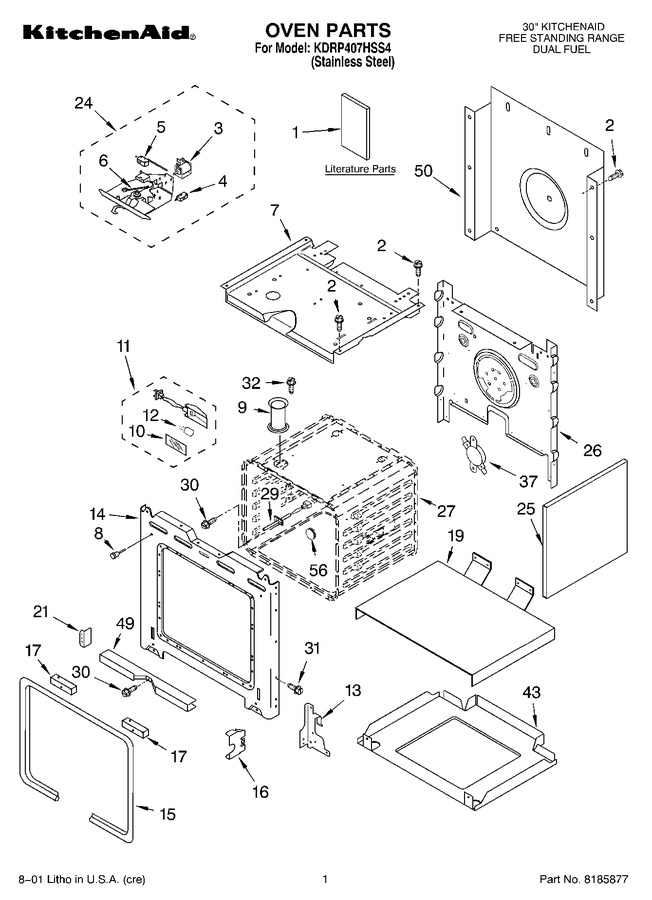

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4455927		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300219		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4453057		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4453152		Literature Parts (conversion Instructions)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.80
3	4452224		Solenoid		Appelez-nous	-
4	4452312		Switch, Micro				$ 90.43
5	4451426		Switch, Micro		Appelez-nous	-
6	4451537		Spring, Latch		Appelez-nous	-
7	4455866		Top, Chassis		Appelez-nous	-
8	4448520		Bumper, Door				$ 20.03
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 110.21
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 12.81
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 103.38
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 63.62
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 67.10
16	4452152		Bracket, Mounting				$ 31.66
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
17	4452260		Spacer, Foam		Appelez-nous	-
19	4451478		Support, Insulation				$ 54.10
21	4455510		Bracket, Support		Appelez-nous	-
24	4451896		Latch Assembly				$ 163.41
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 135.62
26	4452234		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 94.50
30	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 7.34
31	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
32	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 13.25
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 53.60
43	4455649		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
56	4452337		Insulation Bottom Vent		Appelez-nous	-
56	4448982		Plug, Button		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 112.37
56	4450365		Insulation, Back				$ 70.95
