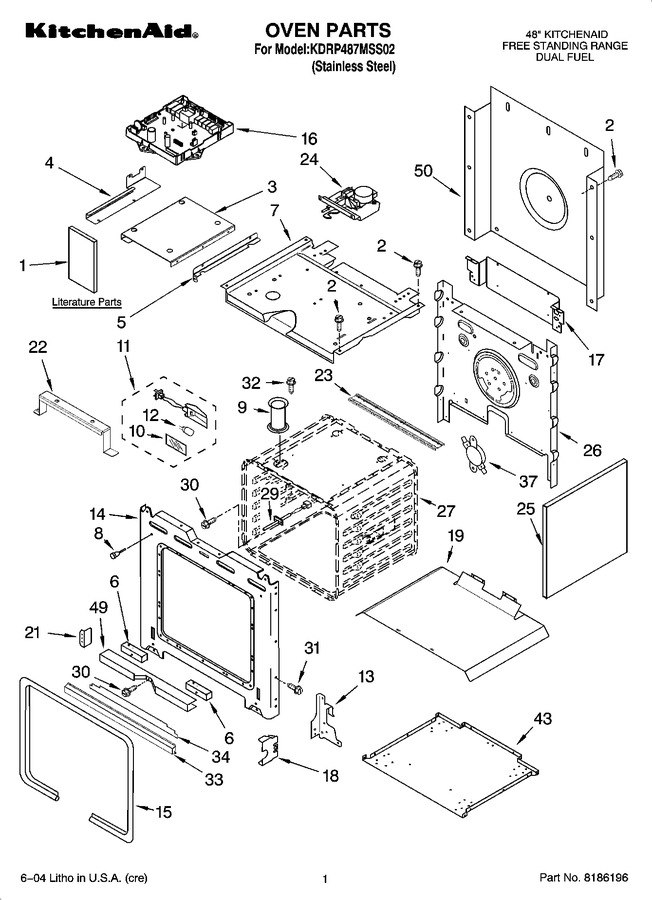

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8302571 | Installation Instructions |
|
- | |||||
| 1 | 8301284 | Use & Care Guide |
|
- | |||||
| 1 | 8302546 | Tech Sheet |
|
- | |||||
| 1 | 8301283 | Conversion Instructions |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 3 | 8301573 | Bracket, Control Support |
|
- | |||||
| 4 | 8302394 | Bracket, Control (left Side) |
|
- | |||||
| 5 | 8301574 | Bracket, Control (right Side) |
|
- | |||||
| 6 | 4452260 | Spacer, Foam |
|
- | |||||
| 7 | 8302191 | Top, Chassis |
|
- | |||||
| 8 | 4448520 | Bumper, Door |
|
$ 20.03 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 110.21 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | 4449748 | Screw |
|
$ 12.81 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 103.38 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 63.62 | ||||
| 13 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 13 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 14 | 9760754 | Frame, Front (Replaces: 4455610) |
|
$ 119.39 | |||||
| 15 | WP4455380 | Gasket, Door (Replaces: 4455380) |
|
Immediately | $ 157.31 | ||||
| 16 | 8301583 | Control, Zodiac (assist Lft Side) |
|
- | |||||
| 16 | 8301182 | Control, Zodiac (assist, Rt Side) |
|
- | |||||
| 17 | 8301254 | Filler, Rear |
|
- | |||||
| 18 | 4452152 | Bracket, Mounting |
|
$ 31.66 | |||||
| 19 | 4451476 | Support, Insulation |
|
- | |||||
| 21 | 4455510 | Bracket, Support |
|
- | |||||
| 22 | 3196265 | Screw (Replaces: 3400099) |
|
- | |||||
| 22 | 4457204 | Support, Wiring |
|
- | |||||
| 23 | 8301159 | Channel, Support |
|
- | |||||
| 24 | WPW10195934 | Latch, Motorized (Replaces: 8302474) |
|
Immediately | $ 300.34 | ||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 135.62 | |||||
| 26 | 4452232 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 94.50 | ||||
| 30 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 7.34 | |||||
| 31 | WP4449040 | Screw, 8-18 X 3/8 (Replaces: 4449040) |
|
$ 6.78 | |||||
| 32 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 33 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 33 | 4457319 | Vent, Bottom Lower |
|
- | |||||
| 34 | 8300825 | Insulation, Bottom Vent |
|
- | |||||
| 37 | WP9759242 | Thermostat (tod) (temp.) Spst (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 43 | 8302289 | Base, Chassis |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.37 | |||||
| 50 | WP4450363 | Insulation, Back (Replaces: 4450363) |
|
$ 170.30 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 135.06 | |||||
| 50 | N/A | Following Parts Not Illustrated Insulation |
|
- | |||||
| 50 | WP4449314 | Insulation, Wrap (Replaces: 4449314) |
|
$ 170.68 |
