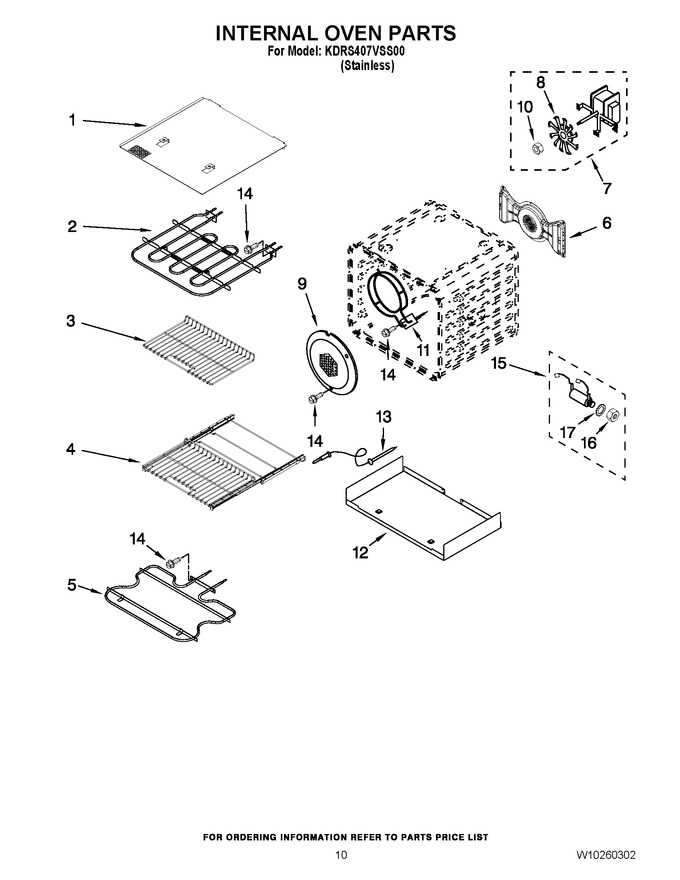

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160856 | Shield, Element Broil |
|
- | |||||
| 2 | W10115994 | Element, Broil |
|
$ 269.75 | |||||
| 3 | W11550107 | Urso, Wire Rack (Replaces: W10284950) |
|
$ 105.40 | |||||
| 4 | W11186364 | Rack, Oven Sliding (Replaces: W10208155) |
|
$ 286.70 | |||||
| 5 | W11783663 | Element, Hidden Bake (Replaces: W10115995) |
|
Immediately | $ 140.73 | ||||
| 6 | W10860133 | Baffle, Convection (Replaces: W10160868) |
|
$ 230.92 | |||||
| 7 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 234.38 | ||||
| 8 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 9 | W10261523 | Cover, Fan |
|
$ 70.07 | |||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 11 | W11643125 | Element, Convection (Replaces: 9762242) |
|
Immediately | $ 114.16 | ||||
| 12 | W10160845 | Tray, Hidden Bake |
|
- | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 16 | WP9755546 | Nut (Replaces: 9755546) |
|
$ 6.57 | |||||
| 17 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 5.77 |
