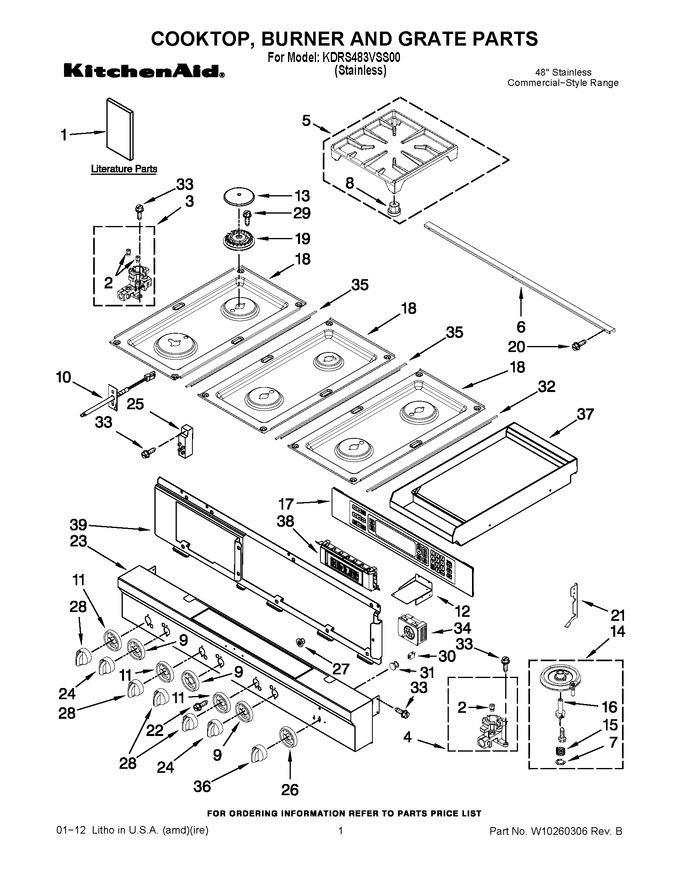

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10284344		Tech Sheet (french)		Appelez-nous	-
1	W10285550		Use & Care Guide		Appelez-nous	-
1	W10284340		Tech Sheet (english)		Appelez-nous	-
1	W10349767		Installation Instructions		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10160232		Orifice (lr,cf,rr)				$ 45.77
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
2	W10791075		Orifice (cr)   (Replaces: W10282663)				$ 93.31
3	WPW10160187		Orifice Holder (dual - Lf, Rf)   (Replaces: W10160187)				$ 73.41
4	W10282659		Orifice Holder (cr)				$ 36.45
4	W10160234		Orifice Holder (lr,cf,rr)				$ 51.39
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269216		Trim, Island		Appelez-nous	-
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 13.92
9	W10261510		Bezel, Front				$ 49.60
10	W10319835		Sensor				$ 215.35
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10160229		Cap, Burner (lr, Cf, Rr)   (Replaces: W10160229)			Immediately	$ 103.32
13	WP8286816		Cap, Burner (cr)   (Replaces: 8286816)				$ 99.67
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 107.11
14	WPW10320937		Base, Burner (lf & Rf)   (Replaces: W10250405)				$ 141.50
14	W10189082		Base, Burner (lr, Cf, Rr)		Appelez-nous	-
15	W10160826		Spring, Electrode		Appelez-nous	-
16	WPW10160235		Electrode (lr, Cf, Rr)   (Replaces: W10160235)				$ 37.87
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 76.02
16	W10250406		Electrode (lf & Rf) (dual)				$ 30.27
17	WPW10116117		Keypad, Urso Double   (Replaces: W10116117)				$ 280.33
18	W10189104		Cooktop (left)				$ 146.58
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189098		Cooktop (right)		Appelez-nous	-
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 134.88
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 138.81
19	W10250458		Burner Head (lr, Cf, Rr)		Appelez-nous	-
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
21	W10130759		Bracket, Moving Console (right)				$ 68.35
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W10284667		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Control (dual - Lf,rf)   (Replaces: W10250389)				$ 70.53
25	WP71002749		Module, Spark   (Replaces: 7431P039-60)				$ 315.92
26	W10261515		Bezel, Griddle		Appelez-nous	-
27	7103P166-60		Nut, Hex				$ 16.70
28	W11177673		Knob, Control (4)   (Replaces: W10250391)				$ 81.50
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 13.27
30	W10116151		Light, Indicator Housing				$ 71.24
31	W10116115		Lens, Indicator Light				$ 7.07
32	W10271525		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
35	W10271524		Trim, T-strip				$ 191.11
36	W10250390		Knob, Griddle				$ 33.28
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,311.59
38	WPW10298120		User Interface   (Replaces: W10298120)				$ 412.97
39	W10250476		Bracket, Main User Interface		Appelez-nous	-
