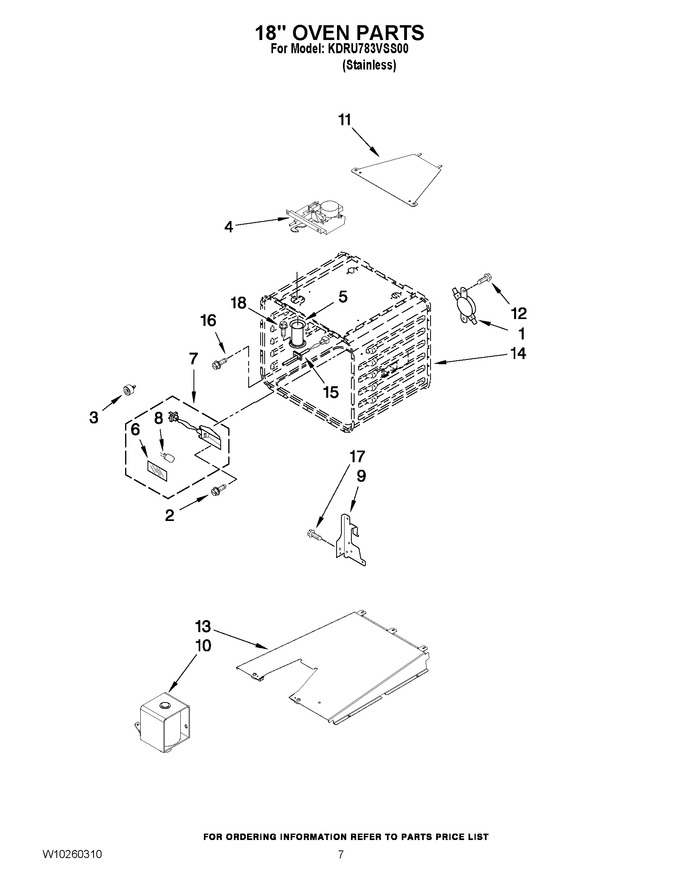

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
2	4449748		Screw				$ 12.81
3	W10105790		Assembly, Bumper				$ 6.67
4	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 294.89
5	W10288078		Tube, Vent				$ 105.17
6	W10169756		Lens, Light				$ 37.97
7	WPW10307114		Oven Light Assy   (Replaces: W10009940)			Immediately	$ 104.41
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
9	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
9	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
10	W10273653		Vent, Cooling Bottom		Appelez-nous	-
11	W10160858		Cover, Latch				$ 69.25
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
13	W10160897		Vent, Cooling Top		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 94.50
16	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
17	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.88
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
NI	W11688722		Insulation, Wrap, 18``   (Replaces: W10115993)		Appelez-nous	-
NI	W10145745		Insulation, Back, 18``		Appelez-nous	-
