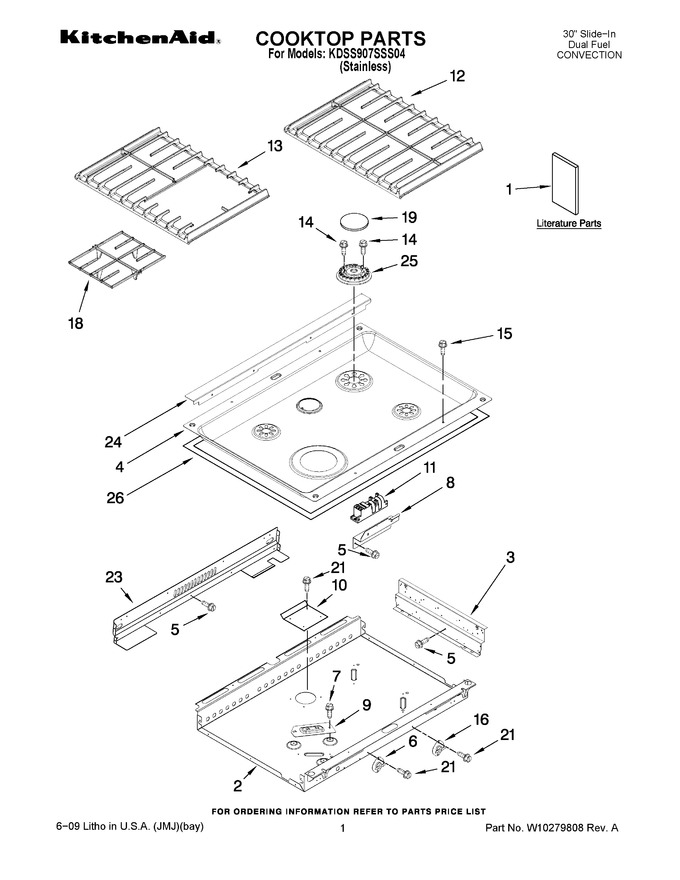

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9763467 | Safe Cooking Tips (guide Easy Set) |
|
- | |||||
| 1 | W10154991 | Installation Instructions |
|
- | |||||
| 1 | W10162199 | Use & Care Guide |
|
- | |||||
| 1 | W10112147 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | W10208808 | Burner Box |
|
- | |||||
| 3 | 9761784 | Bracket, Mounting |
|
- | |||||
| 4 | W10175861 | Cooktop |
|
$ 203.16 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | WP9757807 | Thermostat (Replaces: 9757807) |
|
Immediately | $ 101.00 | ||||
| 7 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.88 | ||||
| 8 | W10108030 | Bracket, Spark Module |
|
- | |||||
| 9 | 9763445 | Bracket, Burner |
|
- | |||||
| 10 | 8301084 | Shield, Heat |
|
- | |||||
| 11 | WPW10110491 | Module, Spark (Replaces: W10110491) |
|
Immediately | $ 290.17 | ||||
| 12 | 9761555CB | Grate, Burner (rh) |
|
$ 191.98 | |||||
| 13 | 9761556CB | Grate, Burner (lh) |
|
$ 112.08 | |||||
| 14 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.70 | ||||
| 15 | W10129030 | Screw |
|
- | |||||
| 16 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 18 | WP9761557CB | Grate, Insert (Replaces: 9761557CB) |
|
Immediately | $ 189.10 | ||||
| 19 | WP8284669 | Cap, Burner (6k (rf, Lr)) (Replaces: 8284669) |
|
Immediately | $ 68.03 | ||||
| 19 | 9761563CB | Cap, Burner (12.5k (rr)) |
|
Immediately | $ 97.47 | ||||
| 21 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 23 | 9761755 | Cover, Cooktop Rear |
|
$ 53.38 | |||||
| 24 | WP9763436 | Cover, Top Rear (Replaces: 9763436) |
|
$ 134.16 | |||||
| 25 | WPW10406797 | Head, Burner (large (rr)) (Replaces: 8286182) |
|
$ 83.62 | |||||
| 25 | WPW10406243 | Head, Burner (small (lr, Rf)) (Replaces: 8286181) |
|
Immediately | $ 35.17 | ||||
| 26 | W10109920 | Gasket |
|
$ 43.42 |
