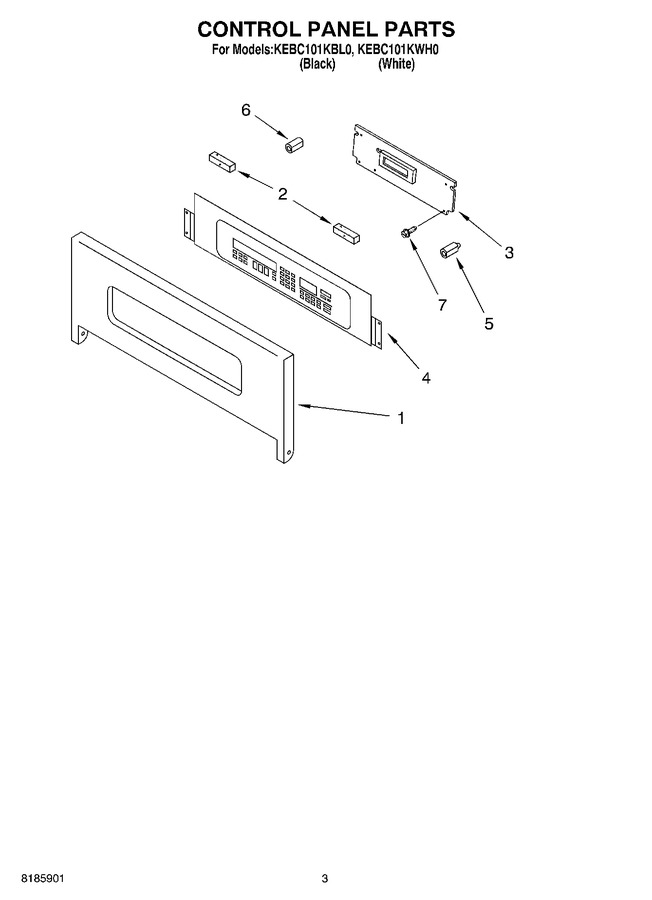

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452604 | Panel, Control (black Model) |
|
- | |||||
| 1 | 4452605 | Panel, Control (white Model) |
|
- | |||||
| 1 | WP3400832 | Panel, Control (screw) (Replaces: 8281179) |
|
Immediately | $ 7.36 | ||||
| 2 | 4452260 | Spacer, Foam |
|
- | |||||
| 3 | 4453163 | Microcomputer |
|
- | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 4 | 8300863 | Switch, Membrane (black) |
|
- | |||||
| 4 | 8300864 | Switch, Membrane (white) |
|
- | |||||
| 5 | 4452248 | Insulation, Board |
|
- | |||||
| 6 | 4452249 | Insulation, Board Support |
|
- | |||||
| 7 | 3400406 | Screw |
|
- |
