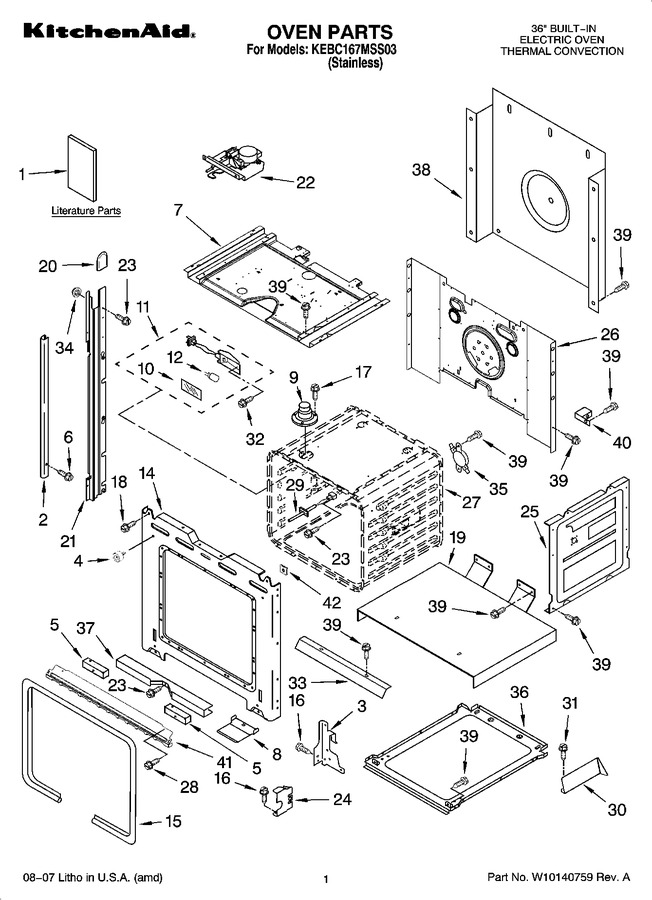

01 - Oven Parts


02 - Control Panel Parts


03 - Internal Oven Parts


04 - Oven Door Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4448687		Easy Set Guide (french)		Appelez-nous	-
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	8304426		Installation Instructions		Appelez-nous	-
1	8304459		Use & Care Guide		Appelez-nous	-
1	8304480		Tech Sheet (oven) (english)		Appelez-nous	-
1	8304481		Tech Sheet (oven) (french)		Appelez-nous	-
1	4449264		Easy Set Guide (english)		Appelez-nous	-
2	W10144984		Trim, Side (left)				$ 133.34
2	WPW10144983		Trim, Side (right)   (Replaces: W10144983)				$ 148.28
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
4	W10105790		Bumper, Door				$ 6.67
5	4452490		Spacer, Foam				$ 34.83
6	WP694091		Screw   (Replaces: 694091)				$ 6.80
7	8301784		Top, Chassis		Appelez-nous	-
8	W10145009		Deflector, Vent				$ 73.45
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 110.21
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 103.38
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 63.62
14	9760757		Frame, Front		Appelez-nous	-
15	W11676901		Gasket, Door   (Replaces: 8300142)				$ 68.17
16	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	8300184		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 114.07
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 115.01
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 310.57
23	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
24	4452152		Bracket, Mounting				$ 31.66
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 135.62
26	8302199		Back, Chassis		Appelez-nous	-
28	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.36
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 94.50
30	8302339		Bracket, Deflector (left)		Appelez-nous	-
30	8302338		Bracket, Deflector (right)		Appelez-nous	-
31	WP3400805		Screw   (Replaces: 3400805)				$ 6.80
32	4449748		Screw				$ 12.81
33	8301780		Deflector, Vent		Appelez-nous	-
34	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.07
35	WP9759243		Thermostat (120c)   (Replaces: 9759243)			Immediately	$ 53.60
36	8302327		Base, Chassis		Appelez-nous	-
37	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
38	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
39	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
40	4449845		Support, Bracket		Appelez-nous	-
41	W10144977		Trim, Bottom		Appelez-nous	-
42	8300159		Insulation, Back		Appelez-nous	-
42	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
42	8300158		Insulation, Wrap		Appelez-nous	-
