SELECT A DIAGRAM

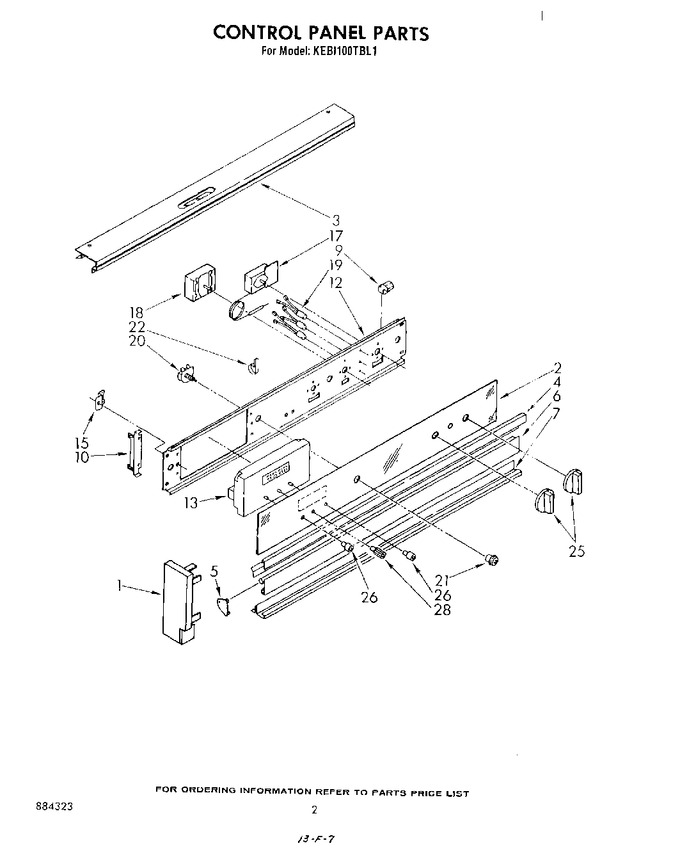

02 - Control Panel , Literature And Optional
03 - Oven
04 - Door
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148015 | End Cap R.h. |
|
- | |||||
| 1 | WP488627 | Screw (4) (Replaces: 342055) |
|
$ 7.30 | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | 3148014 | End Cap. L.h. |
|
- | |||||
| 2 | 3148089 | Control Panel, Glass |
|
- | |||||
| 3 | 312713 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 3 | 3148345 | Rail, Top |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 7.30 | |||||
| 4 | 314179 | Trim, Center |
|
- | |||||
| 5 | 310833 | End Trim, Vent (right Side) |
|
- | |||||
| 5 | 310832 | End Trim, Vent (left Side) |
|
- | |||||
| 6 | 314188 | Door, Vent |
|
- | |||||
| 6 | 310210 | Screw, 8-32 X 5/16 |
|
- | |||||
| 6 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | WP488234 | Screw, 8-32 X 1/4 (4) (Replaces: 9412221) |
|
$ 6.37 | |||||
| 12 | 3148110 | Bracket, Control |
|
- | |||||
| 13 | 3148656 | Timer, Digital |
|
- | |||||
| 13 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 15 | 3148108 | Bracket, Timer (2) |
|
- | |||||
| 17 | 313861 | Thermostat, Oven |
|
- | |||||
| 17 | 311491 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 18 | 3148119 | Selector Switch |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 20 | 312796 | Washer |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 25 | 314222 | Knob, Control (2) |
|
- | |||||
| 26 | 3177121 | Knob, Timer (2) |
|
- | |||||
| 28 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | ||||
| 28 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 28 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 28 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 28 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 28 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 28 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 28 | 8212471 | Touch-up Self-clean (1 Oz.) (Replaces: 242756) |
|
Immediately | $ 78.50 | ||||
| 28 | 261582 | Grease |
|
- | |||||
| 28 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | ||||
| 28 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 28 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 28 | 261881 | Rotisserie Kit |
|
- | |||||
| 28 | 3177122 | Knob, Timer (1) |
|
- | |||||
| 28 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 28 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 28 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 28 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 28 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 28 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| LIT3148806 | Tech Sheet |
|
- | ||||||
| LIT884323 | List, Parts |
|
- | ||||||
| LIT3147469 | Book, Cooking Guide |
|
- | ||||||
| LIT3147424 | Guide, Use & Care |
|
- | ||||||
| LIT3147381 | Instructions, Installation |
|
- |
