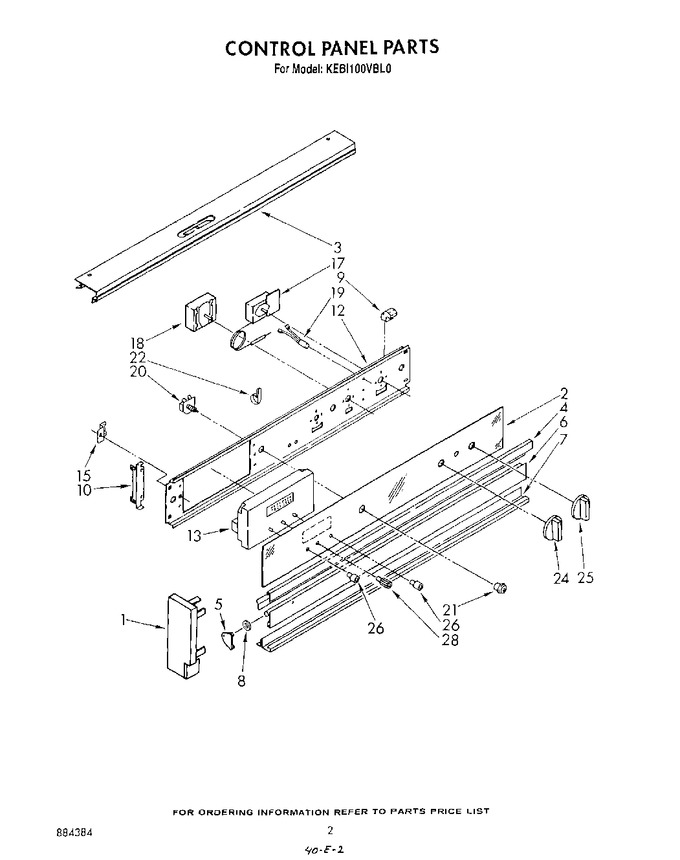

02 - Control Panel
03 - Oven
04 - Door
05 - Wiring Harness
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | WP488627 | Screw (4) (Replaces: 342055) |
|
$ 7.30 | |||||
| 1 | 3148015 | End Cap R.h. |
|
- | |||||
| 1 | 3148014 | End Cap. L.h. |
|
- | |||||
| 2 | 3148089 | Control Panel, Glass |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 7.30 | |||||
| 3 | 3149437 | Rail, Top |
|
- | |||||
| 3 | 98520 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 4 | 314179 | Trim, Center |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door L.h. |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door R.h. |
|
- | |||||
| 6 | 310210 | Screw, 8-32 X 5/16 |
|
- | |||||
| 6 | 314190 | Door, Vent |
|
- | |||||
| 6 | 342043 | Screw, 8a X 3/8 |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 8 | 3148905 | Washer (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | WP965173 | Screw, 8-32 X 1/4 (4) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 12 | 3148110 | Bracket, Control |
|
- | |||||
| 13 | 3148656 | Timer, Digital |
|
- | |||||
| 13 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 15 | 3148108 | Bracket, Timer (2) |
|
- | |||||
| 17 | 311491 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 17 | 3148937 | Thermostat, Oven |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 18 | 3148119 | Selector Switch |
|
- | |||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 98520 | Screw, 8a X 3/8 (4) |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 24 | 3149116 | Knob, Control |
|
- | |||||
| 25 | 3149106 | Knob, Control |
|
- | |||||
| 26 | 3177121 | Knob, Timer (2) |
|
- | |||||
| 28 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | ||||
| 28 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 28 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 28 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | 978883 | Almond (uncut) |
|
- | |||||
| 28 | 261889 | New Avocado (uncut) |
|
- | |||||
| 28 | 261887 | Coffee (uncut) |
|
- | |||||
| 28 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 28 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 28 | 285368 | Platinum (uncut) |
|
- | |||||
| 28 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 28 | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | ||||
| 28 | 261582 | Grease |
|
- | |||||
| 28 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | ||||
| 28 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | |||||
| 28 | 3177122 | Knob, Timer (1) |
|
- | |||||
| 28 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 28 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 28 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 28 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 28 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 28 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 28 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 28 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 28 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 28 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 28 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 28 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 28 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 28 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 28 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 28 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 28 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 28 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 28 | 261888 | New Avocado |
|
- | |||||
| 28 | 261886 | Coffee |
|
- | |||||
| 28 | 261890 | Harvest Gold |
|
- | |||||
| 28 | 285365 | Toast |
|
- | |||||
| 28 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 28 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 53.90 | |||||
| 28 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 84.73 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 |
