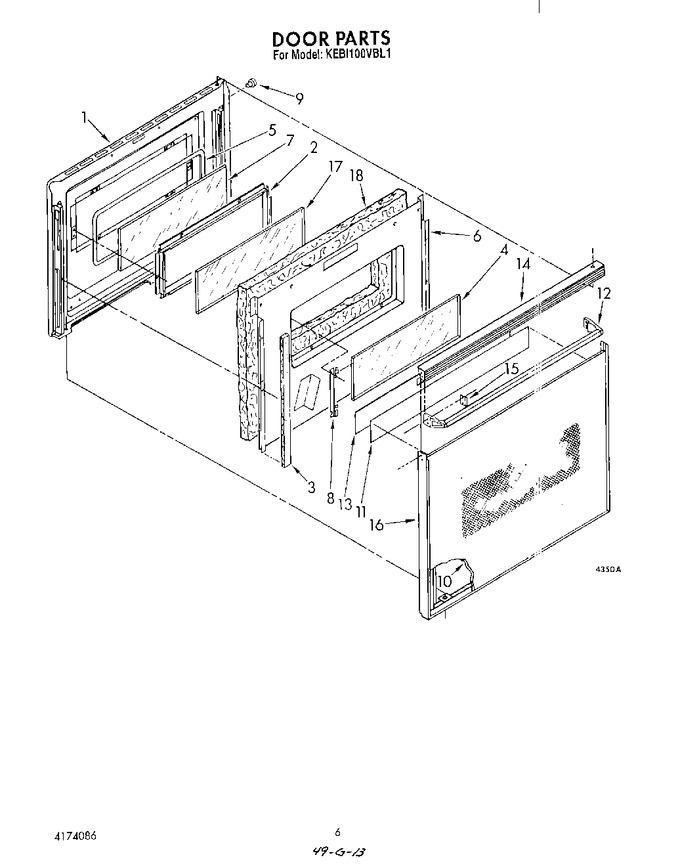

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
1	3148443		Screw		Appelez-nous	-
2	3148234		Frame, Window		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
4	3148443		Screw (4)		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148723		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner   (Replaces: 313004)				$ 142.50
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3147636		Handle, Oven Door		Appelez-nous	-
12	WP355515		Screw (4)   (Replaces: 355515)				$ 7.63
13	254225		Screw (2)		Appelez-nous	-
13	3148680		Shield, Door		Appelez-nous	-
14	WP355515		Screw (4)   (Replaces: 355515)				$ 7.63
14	3148606		Top, Door		Appelez-nous	-
15	3149333		Screw (5)				$ 5.33
15	314235		Clip, Mtg.(2)		Appelez-nous	-
16	3148784		Frame, Door		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 142.50
18	3147951		Insulation, Door		Appelez-nous	-
