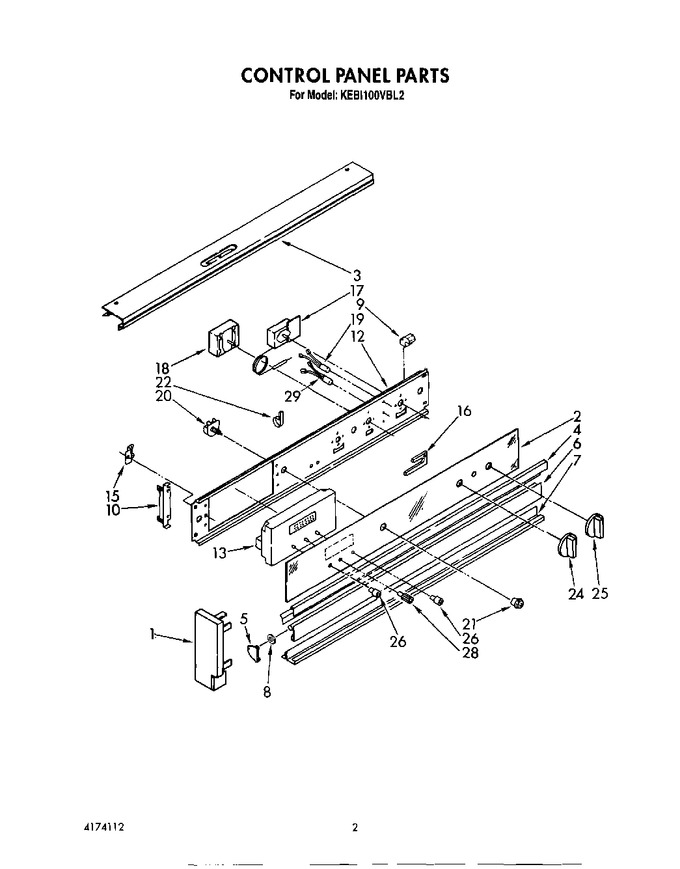

02 - Control Panel


03 - Oven , Literature


04 - Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148015		End Cap R.h.		Appelez-nous	-
1	3148014		End Cap. L.h.		Appelez-nous	-
2	3150148		Control Panel, Glass		Appelez-nous	-
3	98520		Screw (2)		Appelez-nous	-
3	WP488627		Screw (2)   (Replaces: 342055)				$ 7.30
3	3149437		Trim, Top		Appelez-nous	-
4	314179		Trim, Center		Appelez-nous	-
5	3148698		End Trim, Vent Door L.h.		Appelez-nous	-
5	3148697		End Trim, Vent Door R.h.		Appelez-nous	-
6	342043		Screw		Appelez-nous	-
6	314190		Door, Vent		Appelez-nous	-
7	314184		Trim, Bottom		Appelez-nous	-
8	3148905		Washer (2)		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
10	98520		Screw (4)		Appelez-nous	-
12	3148110		Bracket, Control		Appelez-nous	-
13	3148656		Timer, Digital		Appelez-nous	-
13	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.68
15	98788		Nut (4)		Appelez-nous	-
15	3148108		Bracket, Timer (2)		Appelez-nous	-
16	3149142		Shield, Air		Appelez-nous	-
17	311491		Screw (2)		Appelez-nous	-
17	3148937		Thermostat, Oven		Appelez-nous	-
18	155023		Screw,			Immediately	$ 7.91
18	3148119		Selector Switch		Appelez-nous	-
19	311802		Light Indicator Oven, Lock & Clean (3)		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
20	98520		Screw (4)		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
21	313030		Bezel Switch		Appelez-nous	-
22	98250		Screw		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.58
24	3149116		Knob, Control		Appelez-nous	-
25	3149106		Knob, Control Adjustable		Appelez-nous	-
26	3177121		Knob, Timer (2)		Appelez-nous	-
28	3177122		Knob, Timer (1)		Appelez-nous	-
29	3148720		Light, Indicator		Appelez-nous	-
