SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Oven, Optional


04 - Oven Door


05 - Component Shelf And Latch


06 - Oven Liner


07 - Wiring Harness

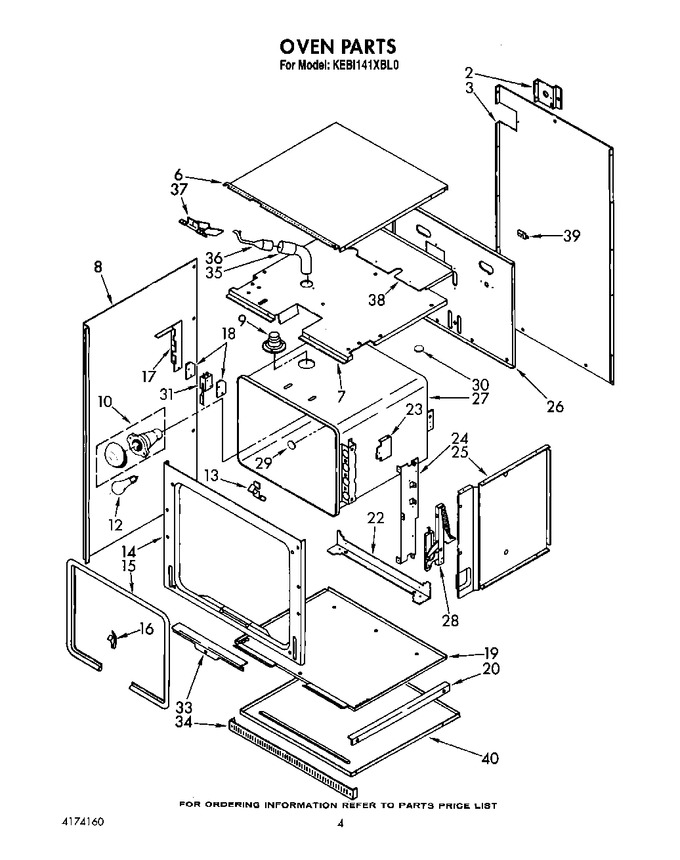

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3177545		Bracket, Conduit		Appelez-nous	-
2	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
3	WP90767		Screw (14)   (Replaces: 300890)			Immediately	$ 7.43
3	3177626		Cabinet, Back		Appelez-nous	-
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 7.43
6	3178137		Cabinet, Top		Appelez-nous	-
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
7	3177437		Top, Module		Appelez-nous	-
8	WP90767		Screw (i0)   (Replaces: 300890)			Immediately	$ 7.43
8	3177442		Side, Cabinet (r.h. & L.h.)		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
10	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 78.37
14	3179776		Screw (4)		Appelez-nous	-
14	3177698		Frame, Front		Appelez-nous	-
15	3179814		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177622		Bottom, Modual		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
20	3179220		Rail, Support (2)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
23	3178612		Shield, Radiation		Appelez-nous	-
23	3179795		Screw (6)		Appelez-nous	-
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	3177433		Bracket, Hinge		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
26	3177558		Back, Module		Appelez-nous	-
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
27	3180803		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door		Appelez-nous	-
28	3178000		Screw (4)		Appelez-nous	-
29	3185109		Button, Plug		Appelez-nous	-
30	3185108		Button, Plug		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
33	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 13.25
33	3179587		Retainer, Seal		Appelez-nous	-
34	4168863		Screw (2)		Appelez-nous	-
34	3180022		Screw (4)		Appelez-nous	-
34	3177788		Vent, Lower Trim		Appelez-nous	-
35	3179922		Vent, Tube (upper, Female)		Appelez-nous	-
36	3180891		Vent, Tube (upper, Male)		Appelez-nous	-
37	3180890		Shield, Vent		Appelez-nous	-
37	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
38	3178133		Extension, Shelf		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
39	4159445		Screw		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
40	242829		18 Ga. 80~c Rating (red)		Appelez-nous	-
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
40	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
40	285368		Platinum		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
40	261881		Rotisserie Kit		Appelez-nous	-
40	832985		Rack, Cooking (bi-level)		Appelez-nous	-
40	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
40	3177552		Bottom, Oven		Appelez-nous	-
40	3177865		Insulation, Wrap		Appelez-nous	-
40	3177870		Insulation, Back		Appelez-nous	-
40	350806		18 Ga. 80~c Rating (yellow 16 Ga. 80~c Rating)		Appelez-nous	-
40	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
40	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
40	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
40	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
40	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
40	242826		18 Ga. 80~c Rating (white)		Appelez-nous	-
40	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
40	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
40	242831		Wire (14 Ga. 200 C Red)				$ 342.23
40	242832		18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating)		Appelez-nous	-
40	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
40	WP261869		Citrine White   (Replaces: 261869)				$ 25.05
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
40	261890		Harvest Gold		Appelez-nous	-
40	285365		Toast		Appelez-nous	-
40	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
40	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 53.90
40	350942		Primer				$ 84.73
40	350941		Leveler (primer)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	978883		Almond		Appelez-nous	-
40	261891		Harvest Gold		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
