Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3180828 Liner, Oven Appelez-nous -
1 3179941 Harness Wire Door Switch Appelez-nous -
2 661415 Element, Broil Appelez-nous -
2 3179117 Screw (4) Appelez-nous -
3 4396923 Grill, Broil   (Replaces: 3147563) In-Stock Immediately $ 54.64

4 3179918 Harness Wire Appelez-nous -
4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 54.64

5 3180865 Rack, Offset Appelez-nous -
6 3180864 Rack, Oven Appelez-nous -
6 3179668 Standoff, Wire Appelez-nous -
6 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 7.43

7 3179117 Screw (2) Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 137.90

7 WP308605 Clamp, Wire   (Replaces: 3179669) Special Order $ 10.58

8 WP112432 Nut, Hex (3)   (Replaces: 112432) Special Order $ 7.77

8 7111P002-60 Clamp, Wire   (Replaces: 4159037) Appelez-nous -
8 3180694 Bracket, Element Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

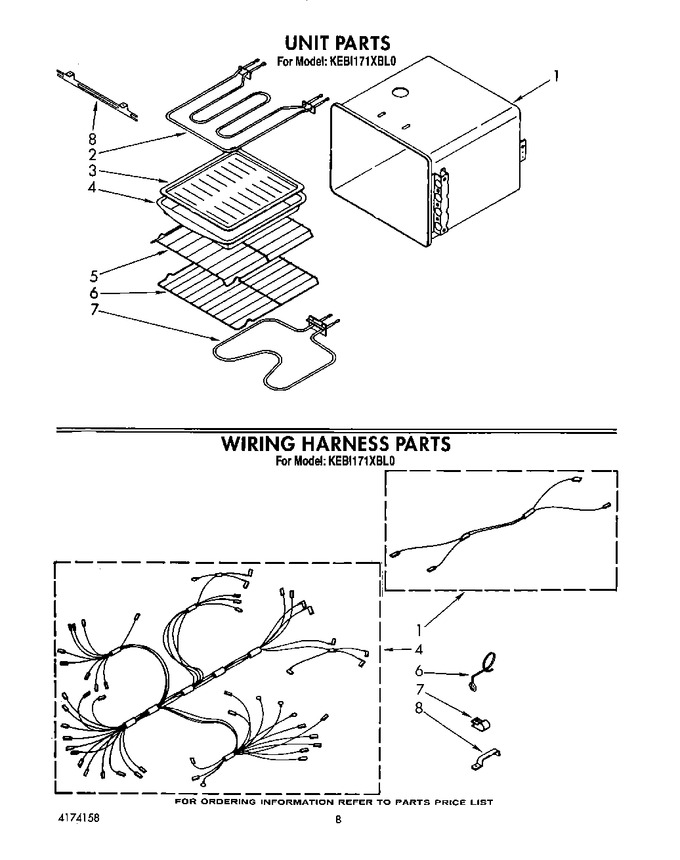

Diagram for KEBI171XWH0
