Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148112 Harness, Wire (main) Appelez-nous -
3 311471 Harness, Wire (oven Light) Appelez-nous -
4 16515 Clip, Harness   (Replaces: 313438) Special Order $ 18.48

5 3147832 Adapter, Terminal Appelez-nous -
6 311472 Harness, Wire (lower Oven) Appelez-nous -
7 WP98997 Clip, Harness   (Replaces: 98997) Special Order $ 10.48


    View Diagram in Separate Window     Print Icon   Print Part List

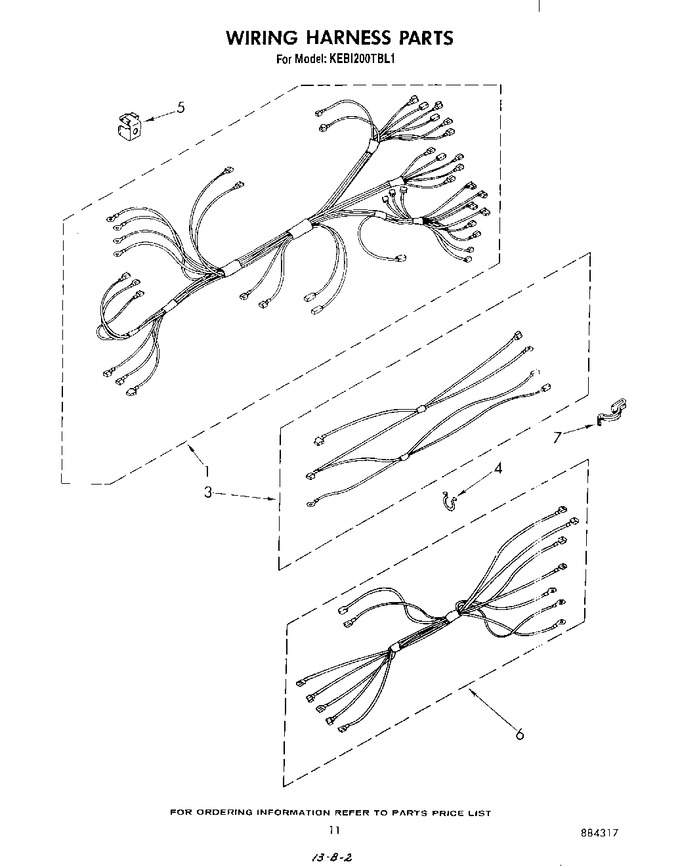

Diagram for KEBI200TBL1
