View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

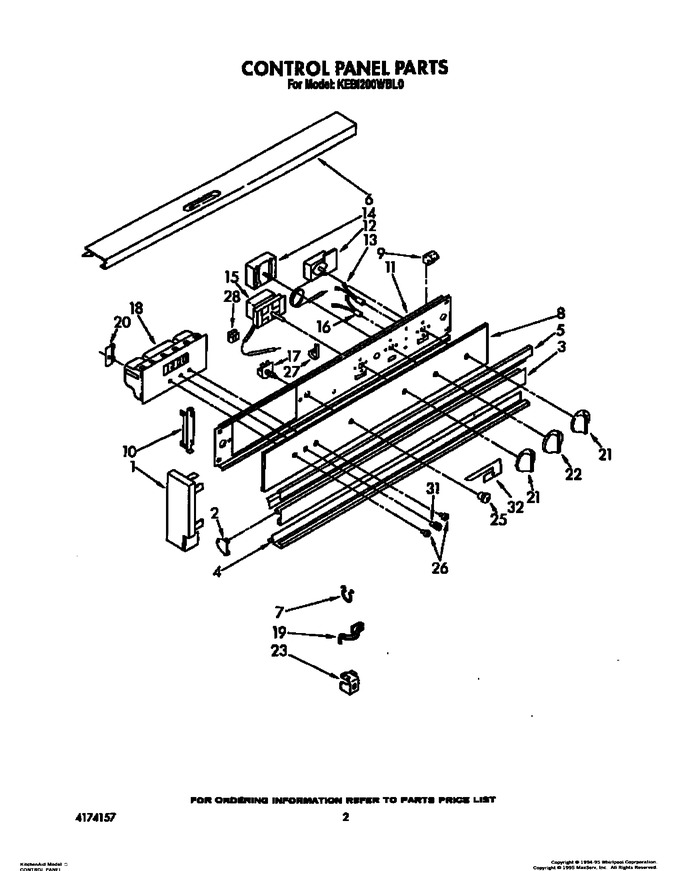

01 - Cover
02 - Control Panel, Optional
03 - Upper Oven
04 - Lower Oven
05 - Lower Oven Door
06 - Upper Oven Door
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150721 | End Cap (right Side) |
|
- | |||||
| 1 | 3150720 | End Cap (left Side) |
|
- | |||||
| 1 | 3148905 | End Cap (washer) |
|
- | |||||
| 2 | 3148697 | End Trim, Vent (left Side) |
|
- | |||||
| 2 | 3148698 | End Trim, Vent (right Side) |
|
- | |||||
| 3 | 314190 | Door, Vent |
|
- | |||||
| 4 | 342043 | Screw (2) |
|
- | |||||
| 4 | 314184 | Trim, Bottom |
|
- | |||||
| 5 | 314179 | Trim, Center |
|
- | |||||
| 6 | 98520 | Screw (2) |
|
- | |||||
| 6 | 3149437 | Trim, Top |
|
- | |||||
| 7 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| 8 | 3150149 | Control Panel, Glass |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 11 | 3148110 | Bracket, Control |
|
- | |||||
| 12 | 311491 | Screw (2) |
|
- | |||||
| 12 | 3148937 | Thermostat, Oven Pyro |
|
- | |||||
| 13 | 311802 | Light, Indicator Surface On Upper Oven On Lower Oven On |
|
- | |||||
| 14 | 3148119 | Selector Switch |
|
- | |||||
| 14 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 15 | 311481 | Thermostat, Oven |
|
- | |||||
| 16 | 3148720 | Light, Indicator Standard Clean |
|
- | |||||
| 16 | 311491 | Screw (2) |
|
- | |||||
| 17 | 312581 | Switch, Oven Light |
|
- | |||||
| 17 | 98520 | Screw (4) |
|
- | |||||
| 17 | 312796 | Lockwasher |
|
- | |||||
| 18 | 3148656 | Timer, Digital |
|
- | |||||
| 19 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 10.48 | |||||
| 20 | 98788 | Nut (4) |
|
- | |||||
| 20 | 3148108 | Bracket, Timer |
|
- | |||||
| 20 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 21 | 3149106 | Knob, Control |
|
- | |||||
| 22 | 3149116 | Knob, Control |
|
- | |||||
| 23 | 3147832 | Adapter, 3-way |
|
- | |||||
| 25 | 313030 | Bezel Switch (1) |
|
- | |||||
| 26 | 3177121 | Knob, Push Button (2) |
|
- | |||||
| 27 | 308609 | Strain Relief (3) |
|
- | |||||
| 27 | 98520 | Screw |
|
- | |||||
| 28 | 313570 | Clip, Tube |
|
- | |||||
| 31 | 3177122 | Knob, |
|
- | |||||
| 31 | 98520 | Screw (2) |
|
- | |||||
| 32 | 3149142 | Shield, Air |
|
- | |||||
| LIT3150703 | Use & Care Guide |
|
- | ||||||
| LIT4174157 | Repair Parts List |
|
- | ||||||
| LIT3147469 | Cooking Guide |
|
- | ||||||
| LIT3149134 | Tech Sheet |
|
- | ||||||
| LIT3147385 | Instructions, Installation |
|
- |
