Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177456 Liner, Oven Appelez-nous -
2 3180164 Element, Broil Appelez-nous -
2 3179117 Screw (4) Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 4164251) In-Stock Immediately $ 54.64

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 54.64

5 3178098 Rack, Offset Appelez-nous -
6 3178110 Rack, Oven Appelez-nous -
7 3179117 Screw (2) Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 137.90

8 4164293 Receptacle, Meat Probe Appelez-nous -
9 3179672 Spacer - Tubing Appelez-nous -
10 4163975 Gasket Appelez-nous -
11 4167266 Jack Cover Appelez-nous -
12 4167277 Cover, Lock Nut Appelez-nous -
13 4168411 Rack, Rotisserie Appelez-nous -
14 4168724 Spear, Rotisserie Appelez-nous -
15 4166352 Skewer Appelez-nous -
16 4167267 Probe & Plug Assy. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

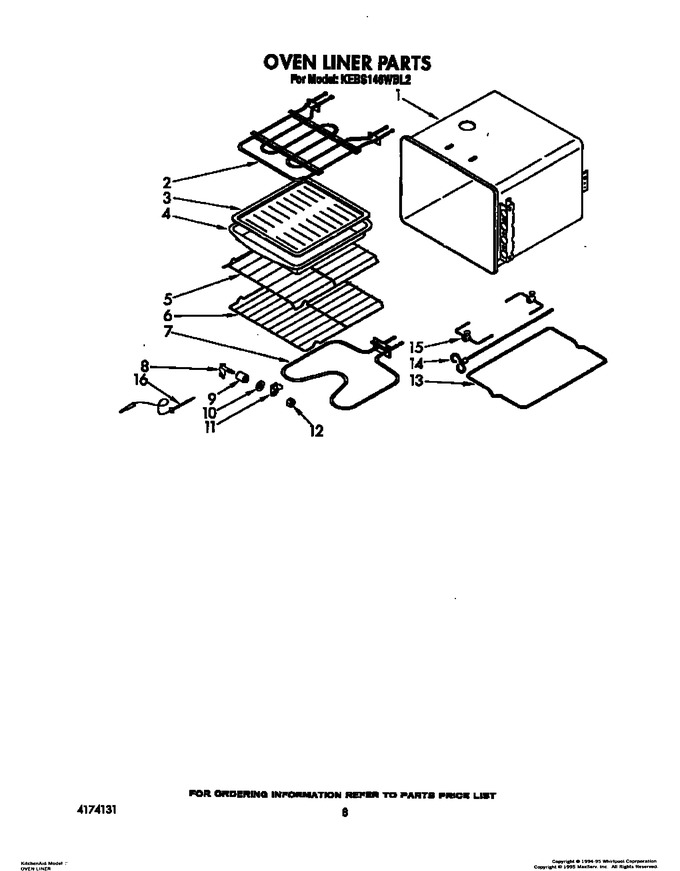

Diagram for KEBS146WBL2
