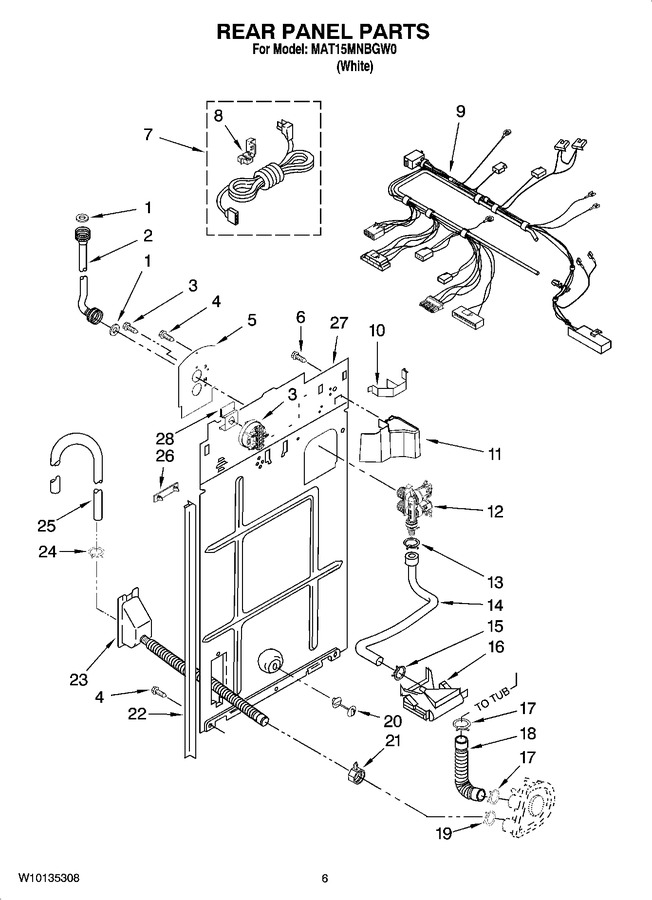

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 2 | WPW10615831 | Hose, Water Inlet (2) (hose (inlet), Red) (Replaces: 3949382) |
|
$ 103.65 | |||||
| 2 | WPW10615809 | Hose, Water Inlet (2) (hose (inlet), Blue) (Replaces: 3949383) |
|
$ 104.71 | |||||
| 3 | W10153112 | Pressure Switch Triple-level |
|
$ 84.83 | |||||
| 4 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 5 | 285930 | Plate, Mixing Valve (Replaces: 8541624) |
|
$ 78.29 | |||||
| 6 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 7 | W10628146 | 10a Cord Adapters (austrailian) (Replaces: W10223804) |
|
$ 124.89 | |||||
| 7 | W10162486 | Cord, Power |
|
- | |||||
| 7 | W10153836 | 10a Cord Lock |
|
- | |||||
| 7 | W10223807 | 10a Cord Adapters (british) |
|
- | |||||
| 7 | W10628146 | 10a Cord Adapters (european) (Replaces: W10223809) |
|
$ 124.89 | |||||
| 8 | 8559337 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 9 | W10186656 | Harness, Wiring (for Detail See Pages 12 & 13) |
|
- | |||||
| 10 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 11 | 8314879 | Shield, Inlet |
|
- | |||||
| 12 | WP3360397 | Valve W/bi Metal, Water Mixing (Replaces: 3360397) |
|
$ 302.44 | |||||
| 13 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.82 | ||||
| 14 | WP3357328 | Inlet Hose, Dual Wall (Replaces: 8541607) |
|
Immediately | $ 24.78 | ||||
| 15 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 8.82 | ||||
| 16 | WP3360977 | Vacuum Break (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 17 | WP616099 | Clamp, Hose (Replaces: W10094820) |
|
Immediately | $ 8.58 | ||||
| 18 | 285871 | Hose, Pump To Tub (includes Item 17) (Replaces: W10116973) |
|
Immediately | $ 28.99 | ||||
| 19 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.81 | ||||
| 20 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 21 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 22 | WP62747 | Pad, Rear Panel (Replaces: 3354204) |
|
$ 27.57 | |||||
| 23 | WPW10358151 | Drain Hose Assy. (includes Item 21) (Replaces: W10180690) |
|
$ 111.23 | |||||
| 24 | WP285655 | Clamp, Hose (Replaces: W10112110) |
|
Immediately | $ 8.81 | ||||
| 25 | WPW10141216 | Hose, Discharge Gooseneck (Replaces: W10141216) |
|
$ 61.24 | |||||
| 26 | 389379 | Retainer, Side To Feature Panel (2) |
|
$ 5.84 | |||||
| 27 | 3357978 | Panel, Rear |
|
- | |||||
| 28 | W10133269 | Bracket, Pressure Switch |
|
- |
