01 - Cover
02 - Control Panel, Lit/optional
03 - Oven

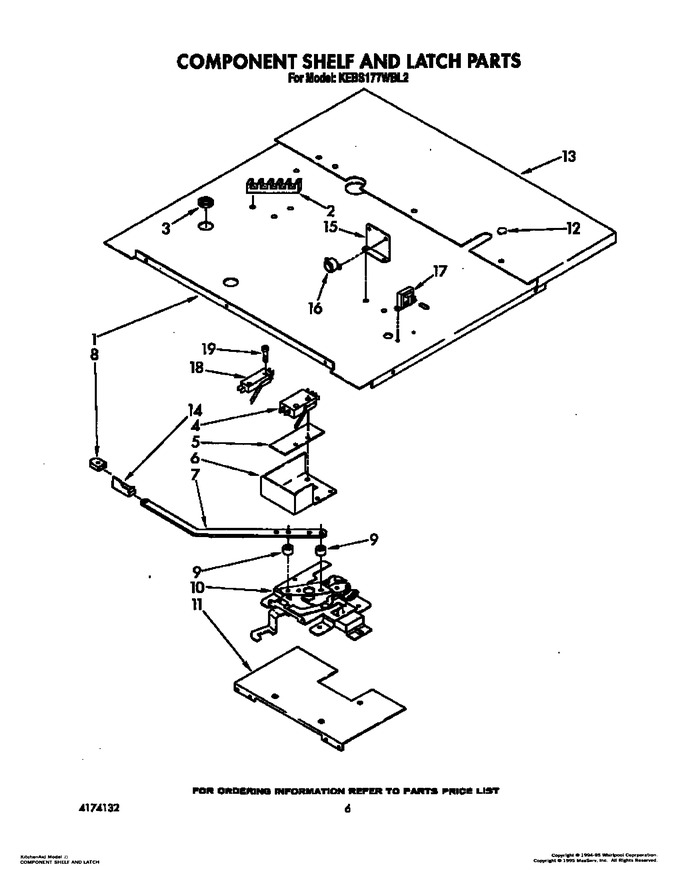

04 - Component Shelf And Latch
05 - Oven Door
06 - Oven Liner
07 - Convection Fan
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (7) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 1 | 3178089 | Shelf, Component |
|
- | |||||
| 2 | W10841059 | Screw (2) (Replaces: 98445) |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 3 | 4159035 | Bushing, Electric |
|
- | |||||
| 4 | 3178668 | Switch, Latch |
|
- | |||||
| 4 | 3177988 | Screw (2) |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 254225 | Screw (2) |
|
- | |||||
| 6 | WP3177991 | Screw (1) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 3177969 | Handle, Latch |
|
- | |||||
| 8 | WP488234 | Screw (Replaces: 4159334) |
|
$ 6.37 | |||||
| 8 | 311253 | Knob, Latch Handle |
|
- | |||||
| 9 | 3179950 | Screw (2) |
|
- | |||||
| 9 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 9 | 3177986 | Spacer, Handle |
|
- | |||||
| 9 | 3179116 | Screw (2) |
|
- | |||||
| 10 | WP3177991 | Screw (3) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 12 | 3179777 | Plug, Button |
|
- | |||||
| 13 | 3178132 | Extension, Shelf |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 13 | WP3177991 | Screw (8) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 14 | 3178232 | Support, Latch |
|
- | |||||
| 14 | WP488234 | Screw (Replaces: 4159334) |
|
$ 6.37 | |||||
| 15 | 254225 | Screw, |
|
- | |||||
| 15 | 313806 | Screw (2) |
|
- | |||||
| 15 | 3179695 | Bracket, Buzzer |
|
- | |||||
| 16 | W10841059 | Screw (2) (Replaces: 98445) |
|
- | |||||
| 16 | 3179914 | Buzzer, Meat Probe |
|
- | |||||
| 17 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 17 | 3179532 | Transformer |
|
- | |||||
| 18 | 3178187 | Switch, Latch |
|
- | |||||
| 19 | 3177988 | Screw (2) |
|
- |
