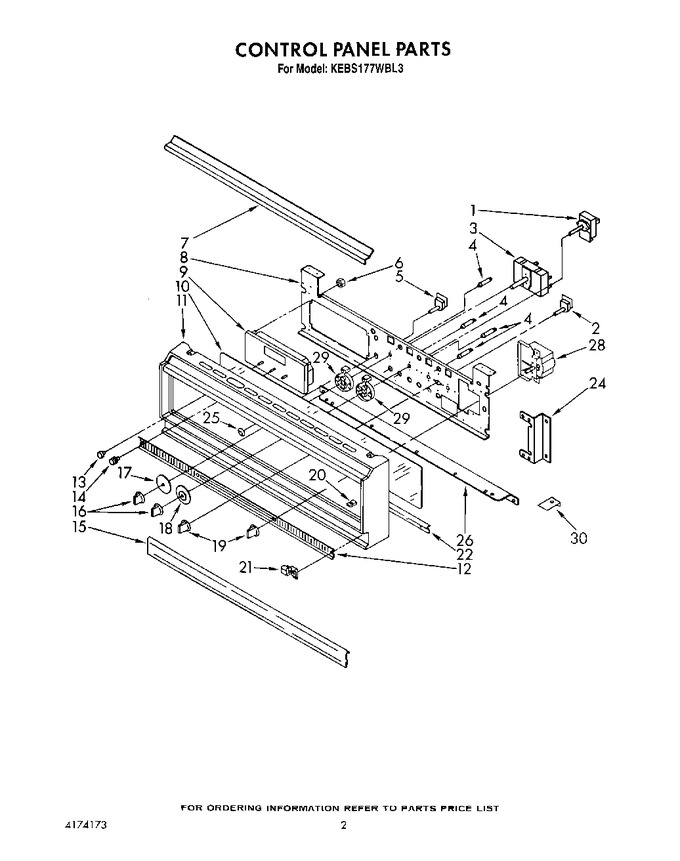

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	155023		Screw (2)			Immediately	$ 7.91
1	3178273		Thermostat, Upper		Appelez-nous	-
2	3178126		Switch, Rotory		Appelez-nous	-
3	155023		Screw (2)			Immediately	$ 7.91
3	3178236		Switch, Selector		Appelez-nous	-
4	4168598		Light, Indicator		Appelez-nous	-
5	3179708		Switch, Oven Light (white Or Almond Model)		Appelez-nous	-
5	3179891		Switch, Oven Light (black)		Appelez-nous	-
6	98788		Nut, Timer (4)		Appelez-nous	-
7	3180130		Insert, Top (almond)		Appelez-nous	-
7	4173163		Insert, Top (black)		Appelez-nous	-
7	3180131		Insert, Top (white)		Appelez-nous	-
8	3177804		Control Panel		Appelez-nous	-
9	3148111		Timer, Electronic		Appelez-nous	-
10	3179712		Glass, Control Panel (almond)		Appelez-nous	-
10	3177937		Glass, Control Panel (black)		Appelez-nous	-
10	3179711		Glass, Control Panel (white)		Appelez-nous	-
11	3178575		Frame, Control Panel (white)		Appelez-nous	-
11	3178576		Frame, Control Panel (almond)		Appelez-nous	-
11	3177760		Frame, Control Panel (black)		Appelez-nous	-
12	3179847		Screw (4)		Appelez-nous	-
12	3179916		Insert, Vent		Appelez-nous	-
13	3177122		Knob, Timer (2) (black)		Appelez-nous	-
13	3179705		Knob, Timer (2) (white Or Almond Model)		Appelez-nous	-
14	3177121		Knob, Timer (black)		Appelez-nous	-
14	3179704		Knob, Timer (white Or Almond Model)		Appelez-nous	-
15	3177972		Door, Latch Handle (black)		Appelez-nous	-
15	3179709		Door, Latch Handle (white)		Appelez-nous	-
15	3179710		Door, Latch Handle (almond)		Appelez-nous	-
15	3179847		Door, Latch Handle (screw (7))		Appelez-nous	-
15	4170323		Door, Latch Handle (screw (5))		Appelez-nous	-
16	3178400		Knob, Control (4)				$ 15.79
17	3178254		Disc, Selector		Appelez-nous	-
18	3178473		Disc, Thermostat (self Clean) (2)		Appelez-nous	-
19	4163840		Knob		Appelez-nous	-
20	4168838		Nut (3)		Appelez-nous	-
21	3177971		Hinge, Door (2)		Appelez-nous	-
21	3179847		Screw (2)		Appelez-nous	-
22	4167590		Retainer, Glass		Appelez-nous	-
22	4159456		Screw (6)		Appelez-nous	-
24	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
24	3177747		Bracket, Control Panel		Appelez-nous	-
25	3179707		Bezel, Switch (white Or Almond Model)		Appelez-nous	-
25	4169372		Bezel, Switch (black)		Appelez-nous	-
26	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
26	3177650		Support, Frame		Appelez-nous	-
28	4173153		Indicator, Light Meat Probe		Appelez-nous	-
28	254225		Screw (2)		Appelez-nous	-
29	3179778		Backlight (2)		Appelez-nous	-
30	3180844		Clip, Spacer		Appelez-nous	-
	LIT4174173		Repair Parts List		Appelez-nous	-
	LIT3177060		Guide, Use & Care		Appelez-nous	-
	LIT3178195		Installation Instructions		Appelez-nous	-
	LIT3178199		Tech Sheet		Appelez-nous	-
