SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Oven


04 - Component Shelf And Latch


05 - Oven Door


06 - Oven Liner


07 - Convection Fan


08 - Wiring Harness

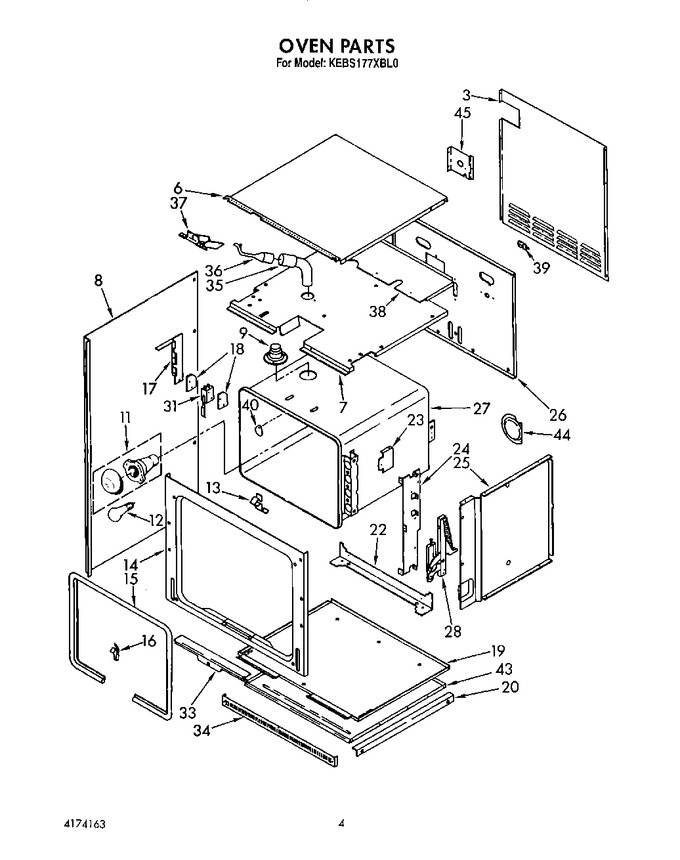

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3177738		Cabinet, Back		Appelez-nous	-
3	WP90767		Screw (10)   (Replaces: 300890)			Immediately	$ 7.43
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 7.43
6	3178136		Cabinet, Top		Appelez-nous	-
7	3177436		Top, Module		Appelez-nous	-
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
8	WP90767		Side, Cabinet (screw (14))   (Replaces: 300890)			Immediately	$ 7.43
8	3177442		Side, Cabinet (right Hand)		Appelez-nous	-
8	3177441		Side, Cabinet (left Hand)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
11	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 78.37
14	3177682		Frame, Front		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Bottom, Module		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
20	3179220		Rail, Support (2)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
23	3179795		Screw (6)		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	3177433		Bracket, Hinge		Appelez-nous	-
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
25	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
26	3177557		Back, Module		Appelez-nous	-
27	3180782		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
28	3178000		Screw (4)		Appelez-nous	-
29	3179777		Plug, Button		Appelez-nous	-
30	4159120		Button, Plug		Appelez-nous	-
31	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
31	313489		Screw (2)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
33	4168863		Screw		Appelez-nous	-
33	3179776		Screw (4)		Appelez-nous	-
33	W11233072		Screw (2)   (Replaces: 4159450)			Immediately	$ 13.25
34	3177789		Vent, Lower Trim (white Or Almond Model)		Appelez-nous	-
34	3180022		Vent, Lower Trim (screw (4))		Appelez-nous	-
34	4168863		Vent, Lower Trim (screw (2))		Appelez-nous	-
34	3177787		Vent, Lower Trim (black Model)		Appelez-nous	-
35	3179922		Vent, Tube (upper, Female)		Appelez-nous	-
36	3180891		Vent, Tube (upper, Male)		Appelez-nous	-
37	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
37	3180890		Shield, Vent		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
38	3178132		Extension, Shelf		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
40	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
40	4167518		Plate, Cover		Appelez-nous	-
43	3177551		Bottom, Oven		Appelez-nous	-
44	4163883		Plate, Cover		Appelez-nous	-
44	WP3177991		Screw (4)   (Replaces: 3177991)			Immediately	$ 6.80
45	3177872		Insulation, Back		Appelez-nous	-
45	3177545		Bracket, Conduit		Appelez-nous	-
45	3177862		Insulation, Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
